Mounting and Powering the dēzlCam Device in Your Vehicle

WARNING

This product contains a lithium-ion battery. To prevent the possibility of personal injury or product damage caused by battery exposure to extreme heat, store the device out of direct sunlight.

WARNING

Both the device and its mount contain magnets. Under certain circumstances, magnets may cause interference with some internal medical devices, including pacemakers and insulin pumps. Keep the device and its mount away from such medical devices.

NOTICE

Both the device and its mount contain magnets. Under certain circumstances, magnets may cause damage to some electronic devices, including hard drives in laptop computers. Use caution when the device or its mount is near electronic devices.

Before you use your device on battery power, you should charge it.

  1. Plug the vehicle power cable Callout number one into the mini-USB port on the mount.

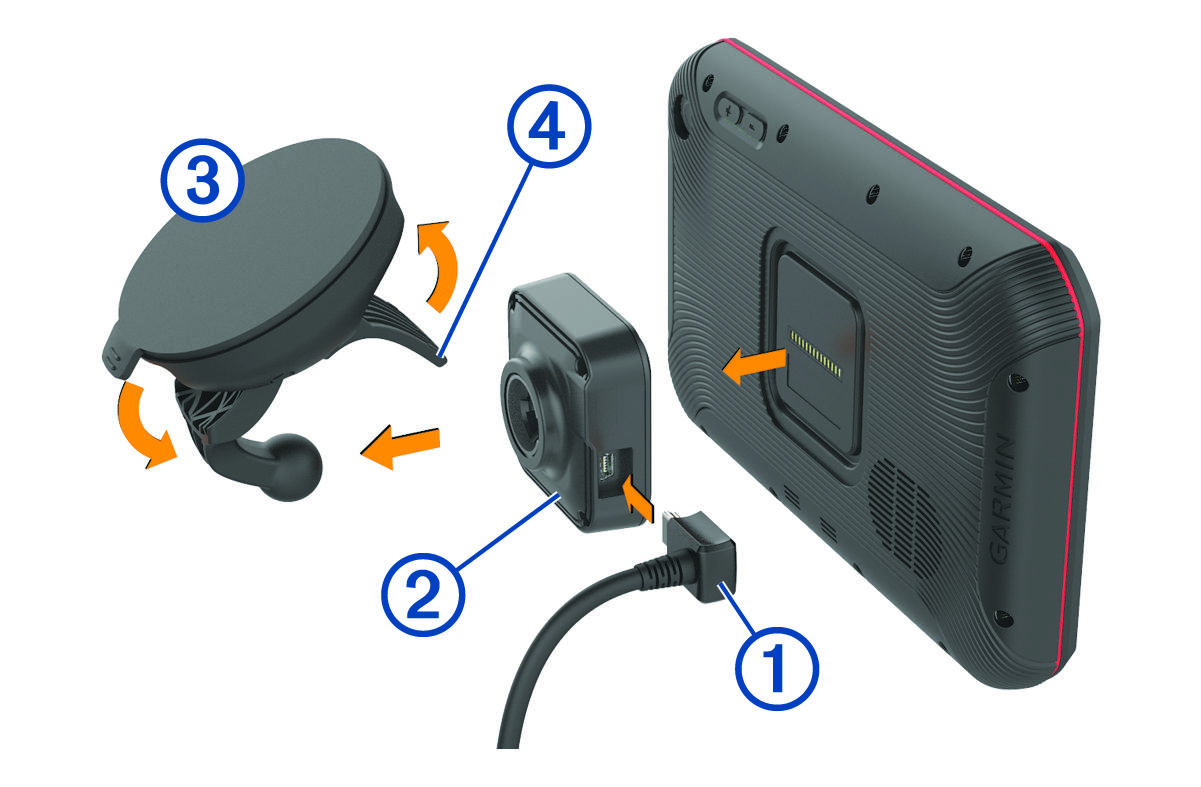

    Device and mount assembly with callouts
  2. Press the mount Callout number two onto the suction cup Callout number three until it snaps into place.
    NOTE: The mount and suction cup may already be assembled in the package.

    The Garmin® logo on the mount should face right-side up. It is easiest to connect the mount and suction cup when the hinged arm on the suction cup is closed. The mount and suction cup fit tightly, and you may need to press hard to connect them.

  3. Press the suction cup to the windshield, and flip the lever Callout number four back toward the windshield.
  4. Place the back of the device onto the magnetic mount.
  5. Select an option:

    • If your power cable has a vehicle power plug, plug it into a power outlet in your vehicle.

    • If your power cable has bare wire connectors, follow the wiring diagram included with your cable to connect the cable to vehicle power.
