Connecting the Handheld Device to a Computer

NOTICE

To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer.

  1. Lift the weather cap Callout number one.

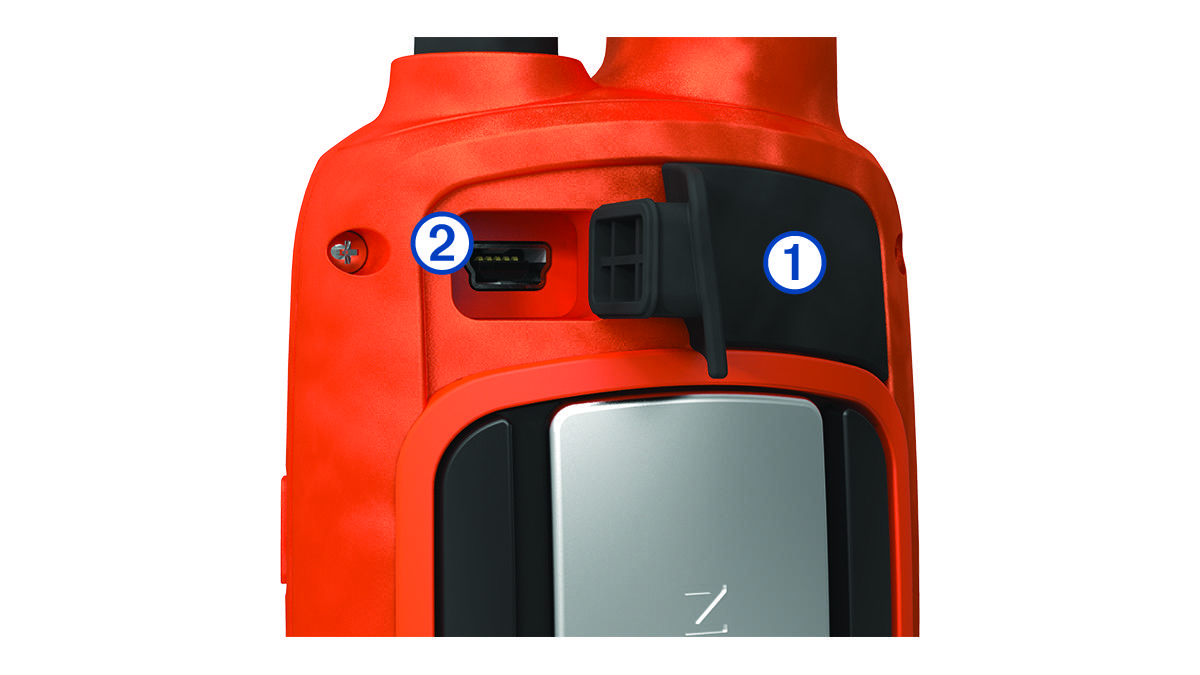

    Close-up view of the charging port and weather cap with callouts
  2. Plug the small end of the USB cable into the mini-USB connector Callout number two on the device.
  3. Plug the other end of the USB cable into an available USB port on the computer.

    Your device and memory card (optional) appear as removable drives in My Computer on Windows® computers and as mounted volumes on Mac® computers.
