Hole View

The device shows the current hole you are playing.

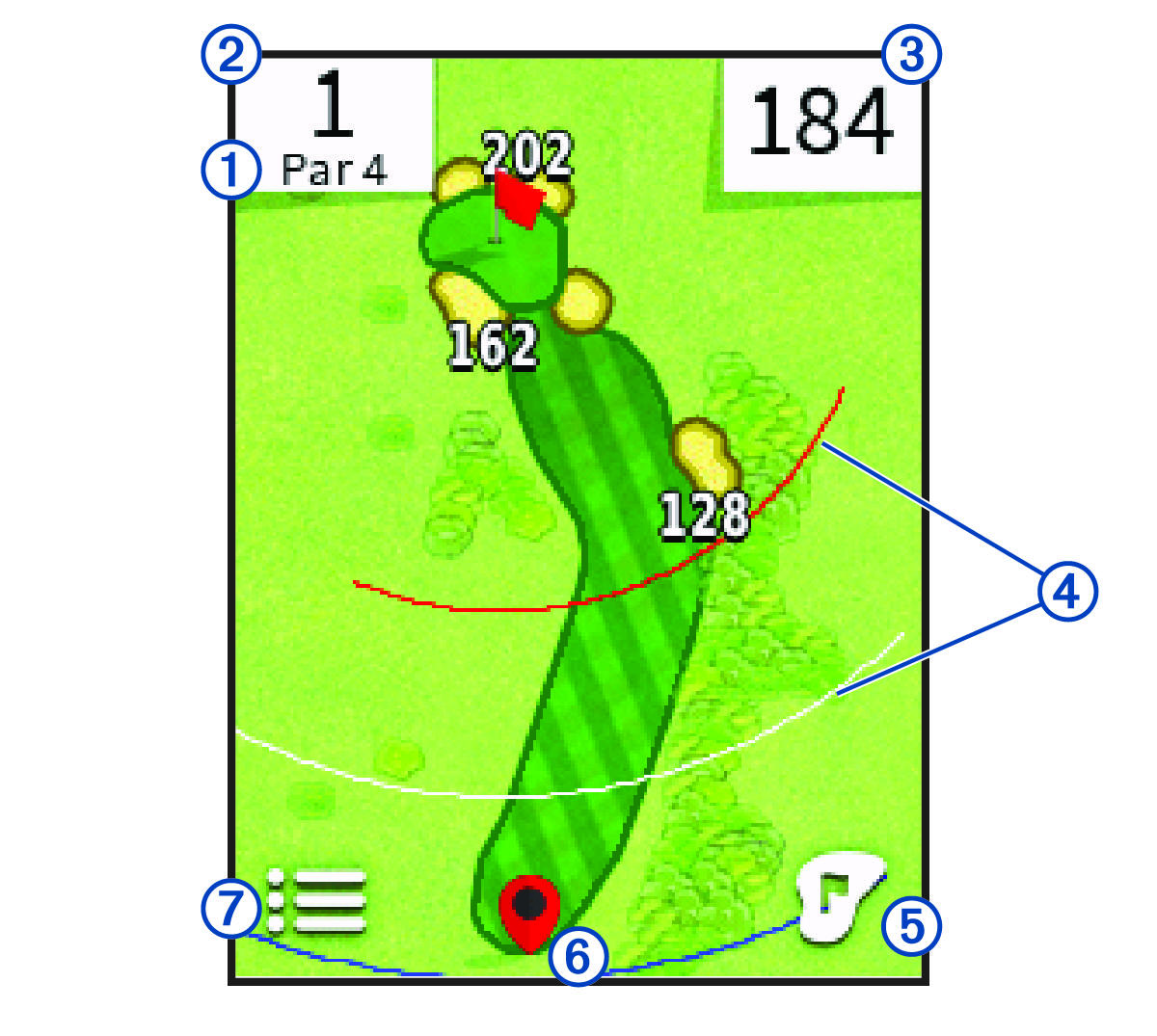

Screenshot of hole view with callouts

Callout number one

Displays the par for the current hole.

Callout number two

Displays the current hole number.

Changes the hole number when selected.

Callout number three

Displays the distance to the middle of the green or selected pin position.

Enables big numbers mode when selected.

Callout number four

Displays layup arcs that indicate the distance to the pin in meters or yards.

The colors indicate distance: red is 100, white is 150, blue is 200, and yellow is 250.

Four arcs appear for par 5 or higher, three arcs appear for par 4, and zero arcs appear for par 3.

Callout number five

Displays a close view of the green for adjusting the pin location.

Callout number six

Shows your current location.

Callout number seven

Displays a menu of in-round features when selected.
