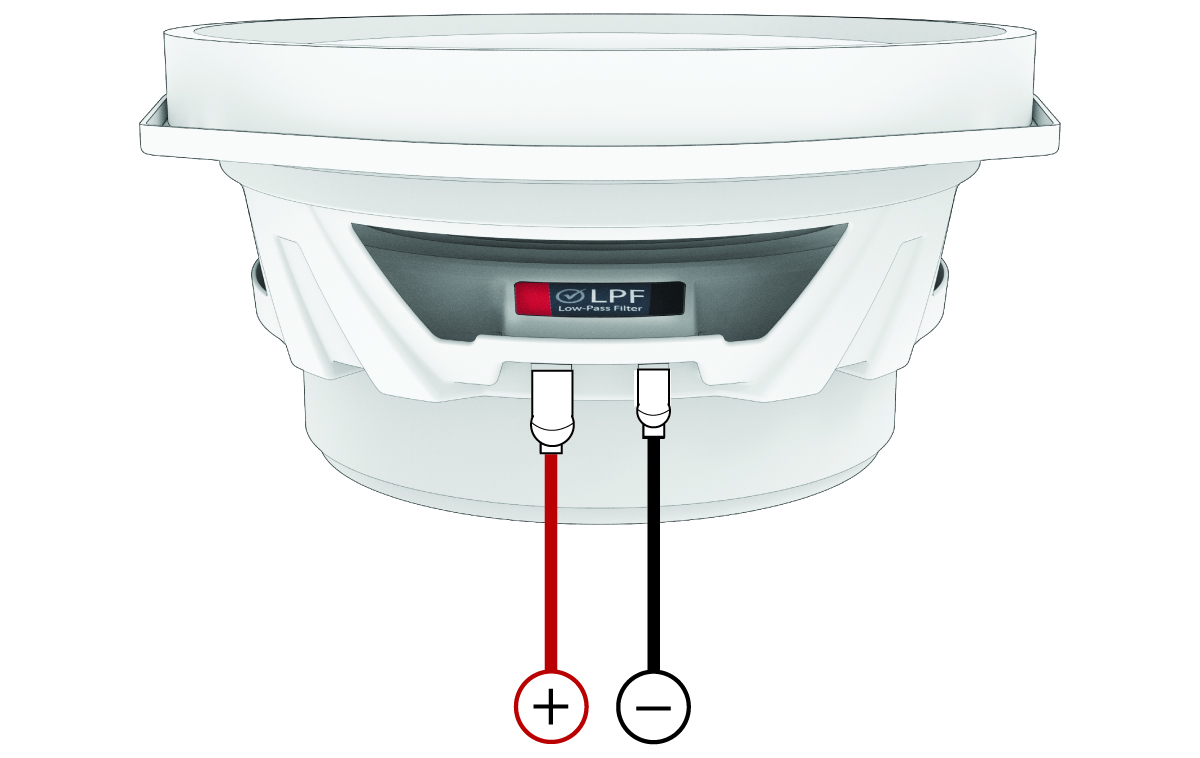

CF-690w Wiring for Use with the Built-in Low-Pass Filter
You must connect to these terminals in passive system applications to use the built-in low-pass filter (550 Hz, at a rate of 18 dB/octave).
