Replacing the Memory Card

You can replace the memory card to increase the storage capacity or to replace a card that has reached the end of its useful life. The device requires an 8 to 128 GB microSD® memory card with a speed rating of Class 10 or higher.

NOTE: A memory card is included so your device is ready to use out of the box. All memory cards have a limited life and must be replaced periodically.
  1. Open the cover Callout number one.

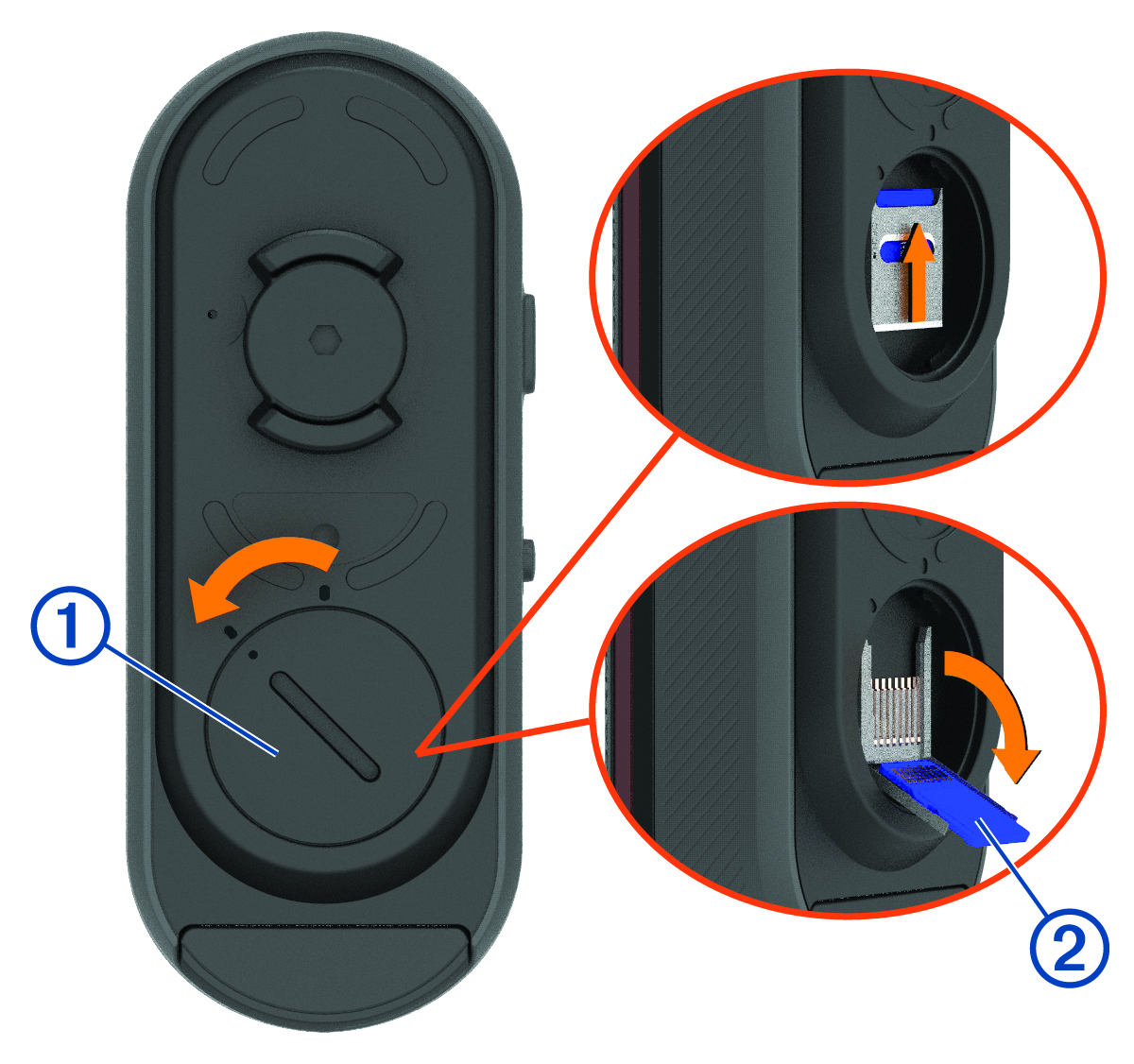

    Memory card installation with callouts
  2. Slide the card holder toward the mount, and lift up.
  3. Pull open the card holder Callout number two.
  4. Insert the memory card into the memory card slot with the contacts facing the device.
  5. Close and latch the card holder Callout number three.

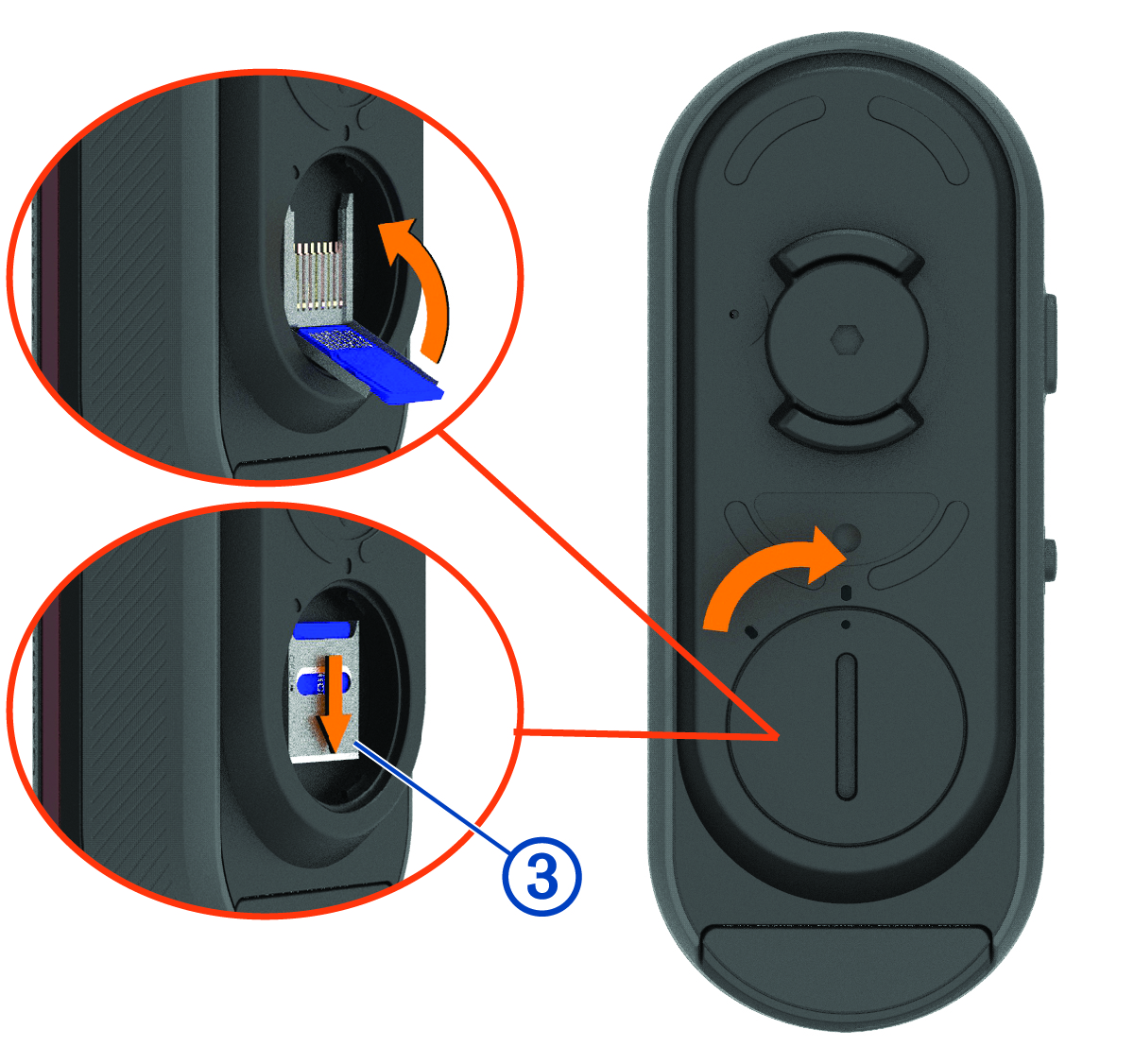

    Memory card installation with a callout
  6. Close and latch the cover.
  7. If necessary, connect to the Varia™ app to reformat the memory card.
