Bail Mounting the Device

NOTICE

If you are mounting the bracket on fiberglass with screws, it is recommended to use a countersink bit to drill a clearance counterbore through only the top gel-coat layer. This will help to avoid cracking in the gel-coat layer when the screws are tightened.

You can use the bracket to bail mount the device on a flat surface.

  1. Using the bail-mount bracket 1 as a template, mark the pilot holes 2.

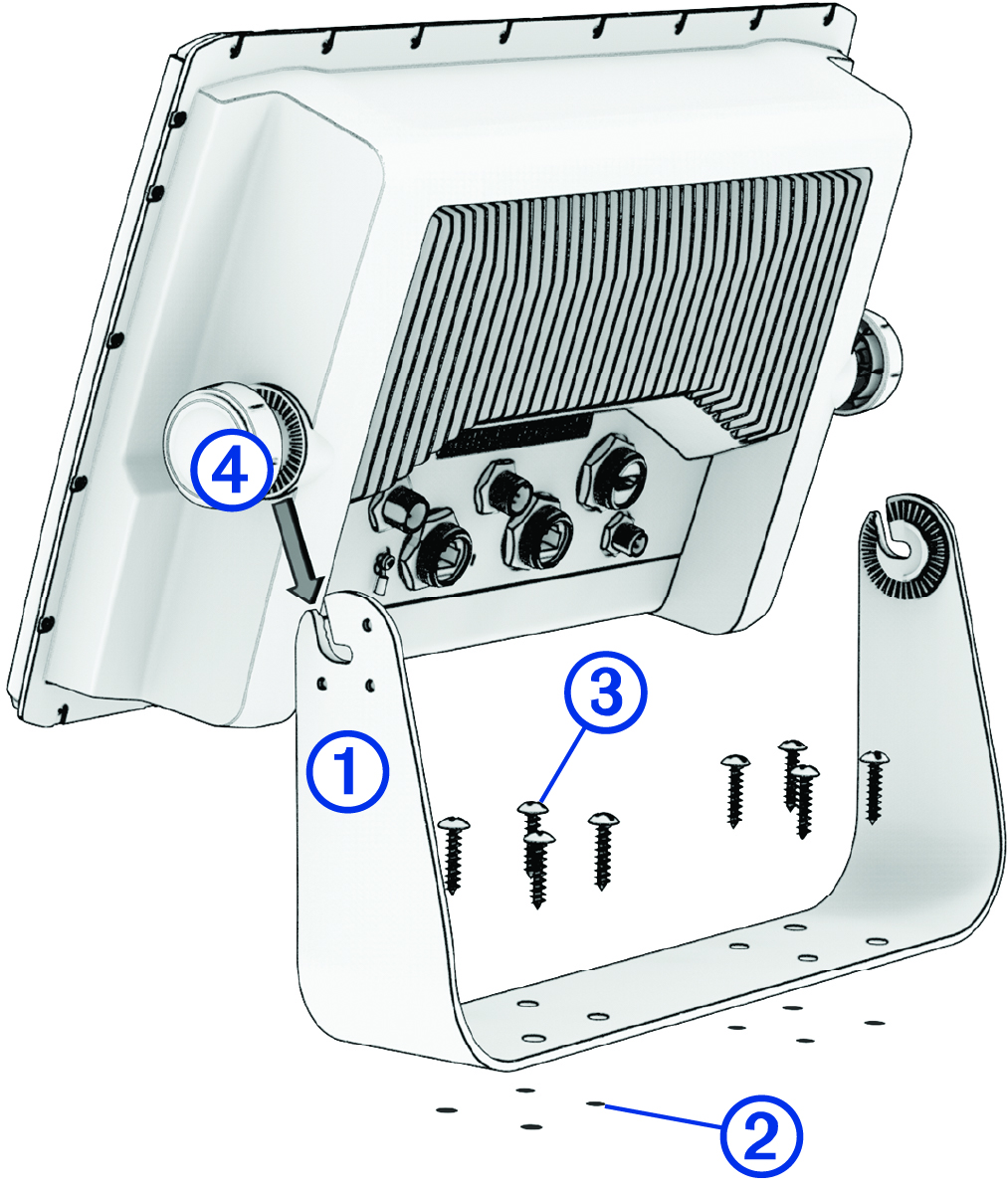

    Back view of the device showing the bail mount configuration
  2. Using a 3 mm (1/8 in.) drill bit, drill the pilot holes.
  3. Secure the bail-mount bracket to the surface using the included washers and wood screws 3.
  4. Install the bail-mount knobs 4 on the sides of the device.
  5. Place the device in the bail-mount bracket, and tighten the bail-mount knobs.
  6. Install the trim caps by snapping them in place around the edges of the device.
