Reinstalling the Antenna

  1. Remove the mounting hardware from the bottom of the antenna 1.

    These screws and washers are used to secure the antenna to the pedestal.

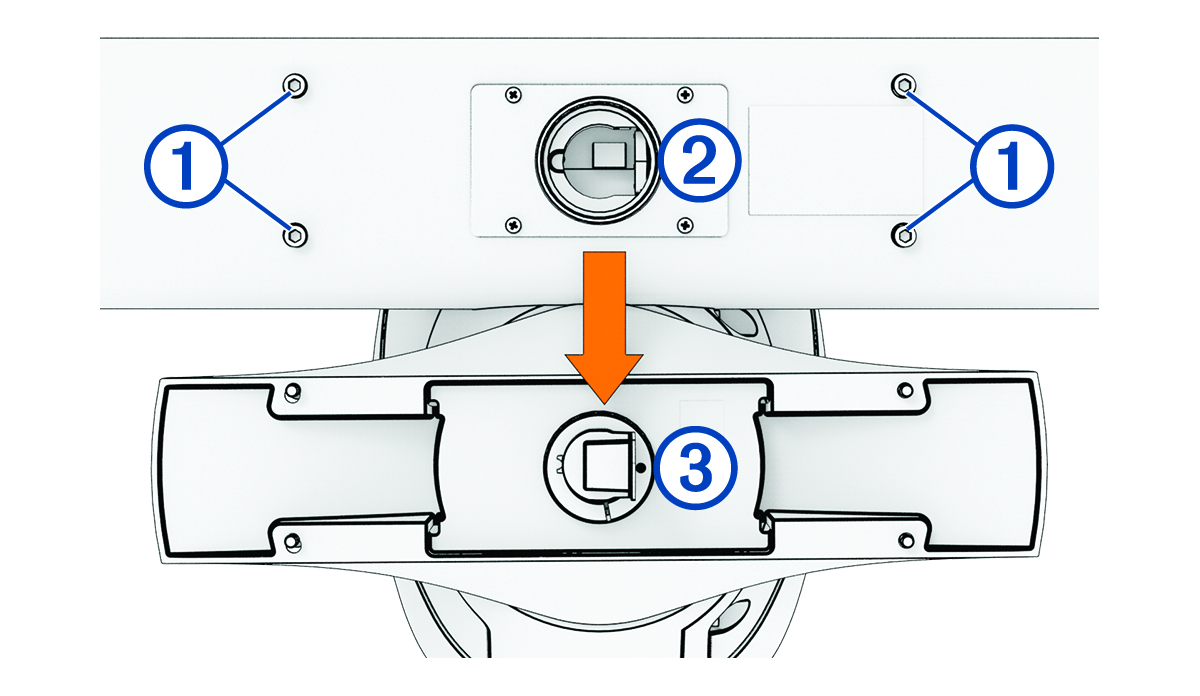

    Antenna alignment with callouts
  2. Align the waveguide 2 on the pedestal with the socket on the bottom of the antenna 3, and slide the antenna onto the pedestal.
  3. Secure the antenna to the pedestal using the hex screws 4, spring washers 5, and flat washers 6 you removed from the antenna.

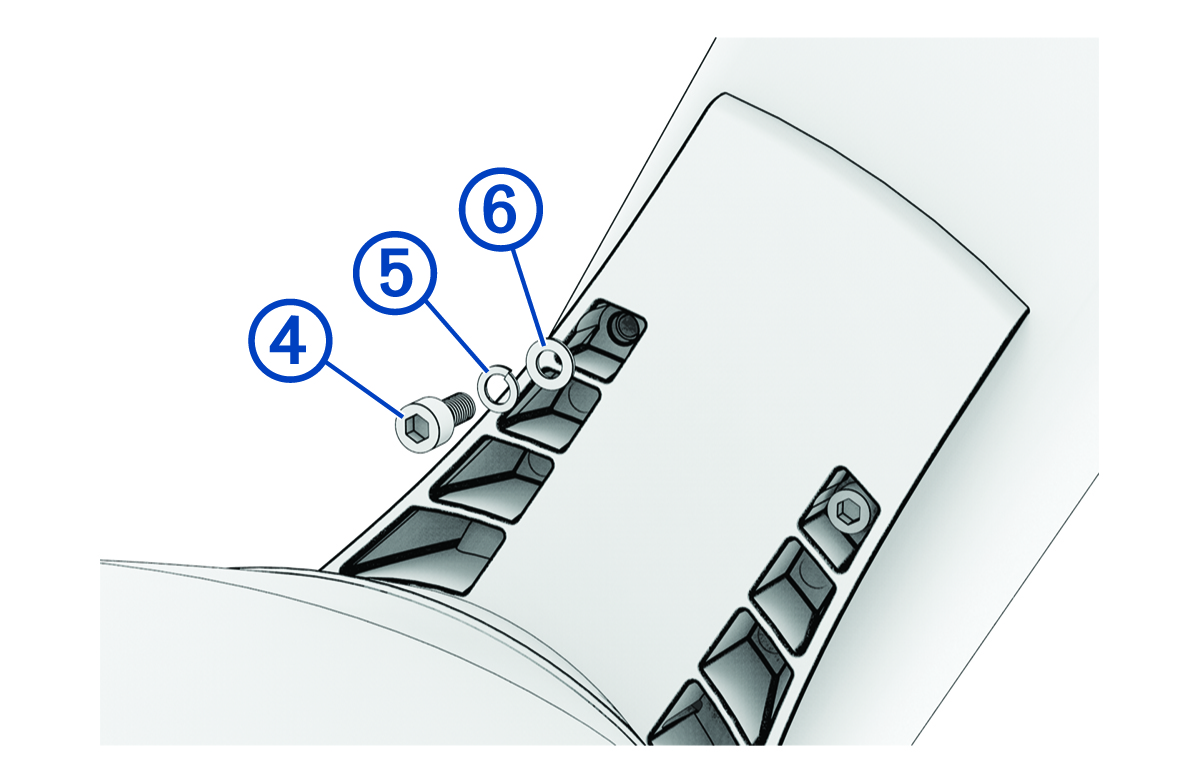

    Mounting hardware with callouts
  4. Using a torque wrench, tighten the hex screws to 0.81 kgf-m (70 lbf-in or 5.83 lbf-ft) to fasten the antenna to the pedestal without damaging the antenna or the mounting hardware.
