Installing the Camera on Your Windshield

NOTICE

The adhesive mount is intended for a long-term installation and can be difficult to remove. You should carefully consider the mounting location before you install the mount.

Before you can install the adhesive mount onto your windshield, you should review the windshield mounting considerations (Mounting Considerations).

For the best results, the ambient temperature should be from 21° to 38°C (from 70° to 100°F) while installing the camera on your windshield. The adhesive may not bond correctly if the temperature is outside this range. If you need to install the camera at lower temperatures, you must clear all snow, ice, and moisture from the windshield and warm the windshield using the vehicle defroster before installing the camera.

The camera attaches to the windshield using the included adhesive mount.

  1. Clean the inside of the windshield using water or alcohol, and a lint-free cloth.

    The windshield must be free of dust, wax, oils, or coatings.

  2. Hold the camera in the desired mounting location on the windshield, and verify the camera has a clear, unimpeded view.
  3. After you have selected a mounting location with a clear view, remove the protective film from the mount adhesive.

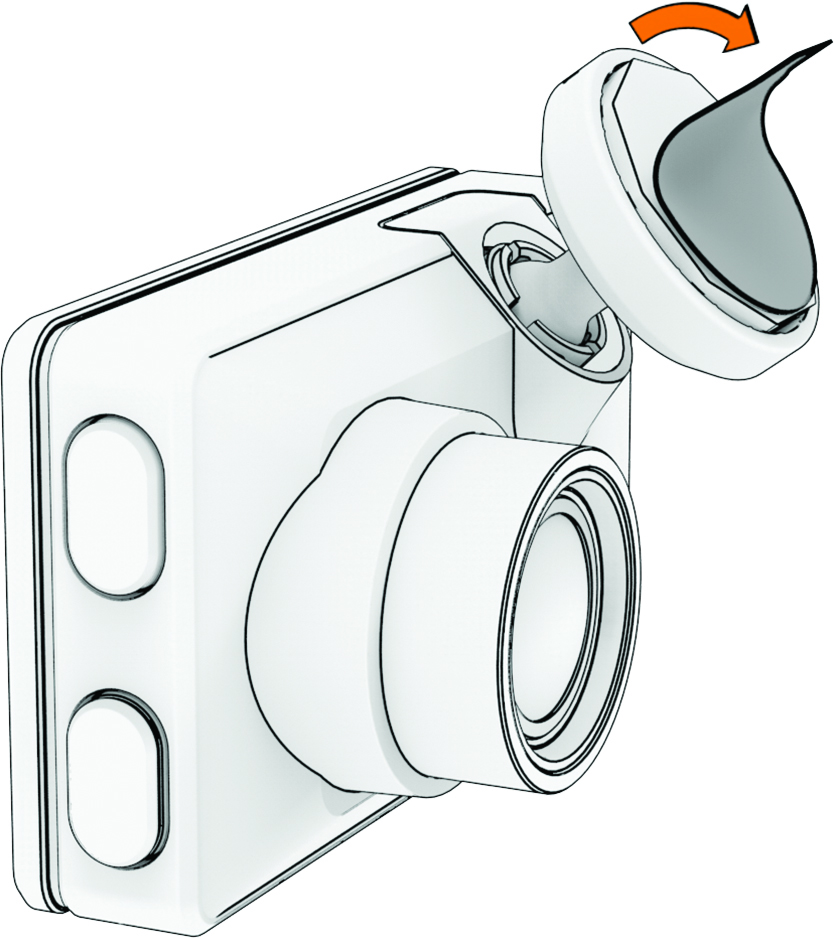

    Protective film peeled away from the mount adhesive
  4. Position the mount over the mounting location.
    TIP: The adhesive is extremely sticky. Avoid touching the adhesive to the windshield until the mount is properly positioned.
  5. Press the mount firmly onto the windshield, and maintain pressure for 30 seconds.

    This helps to ensure the mount adhesive has proper contact with the windshield.

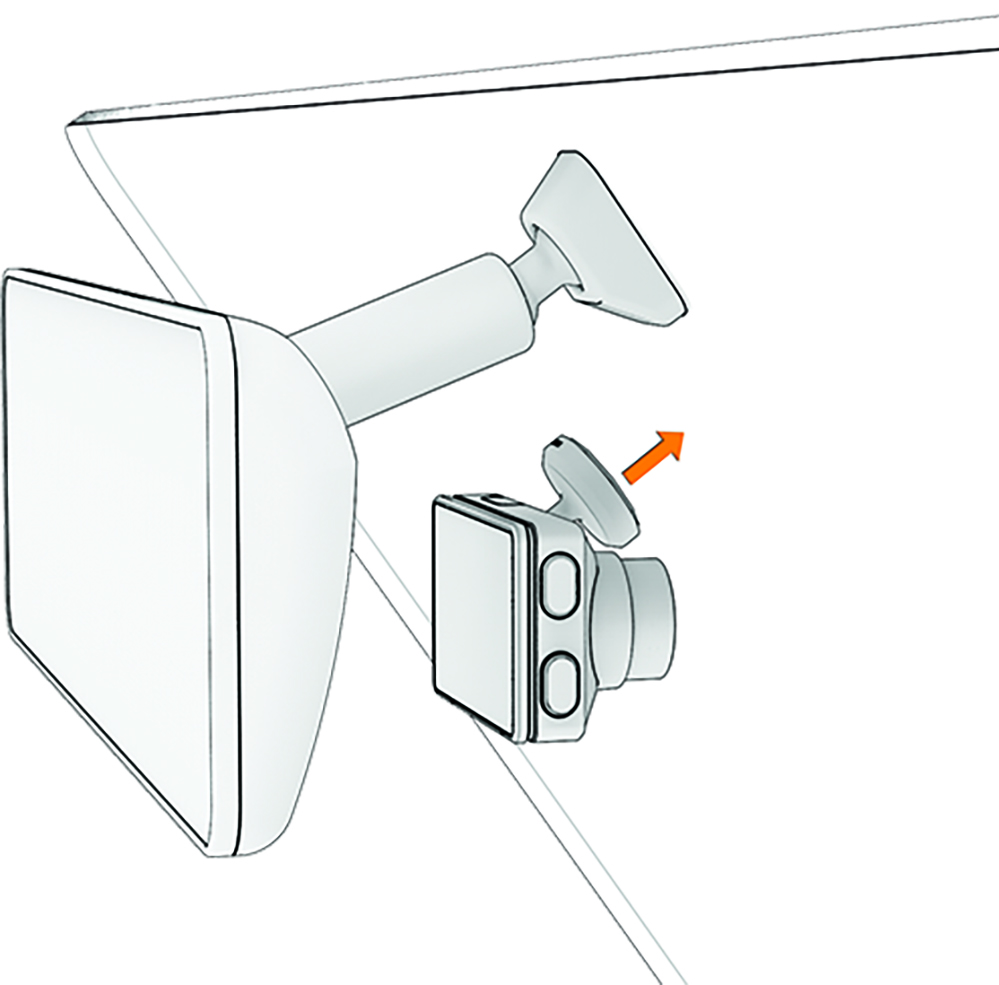

    Camera and mount pressed onto a windshield
