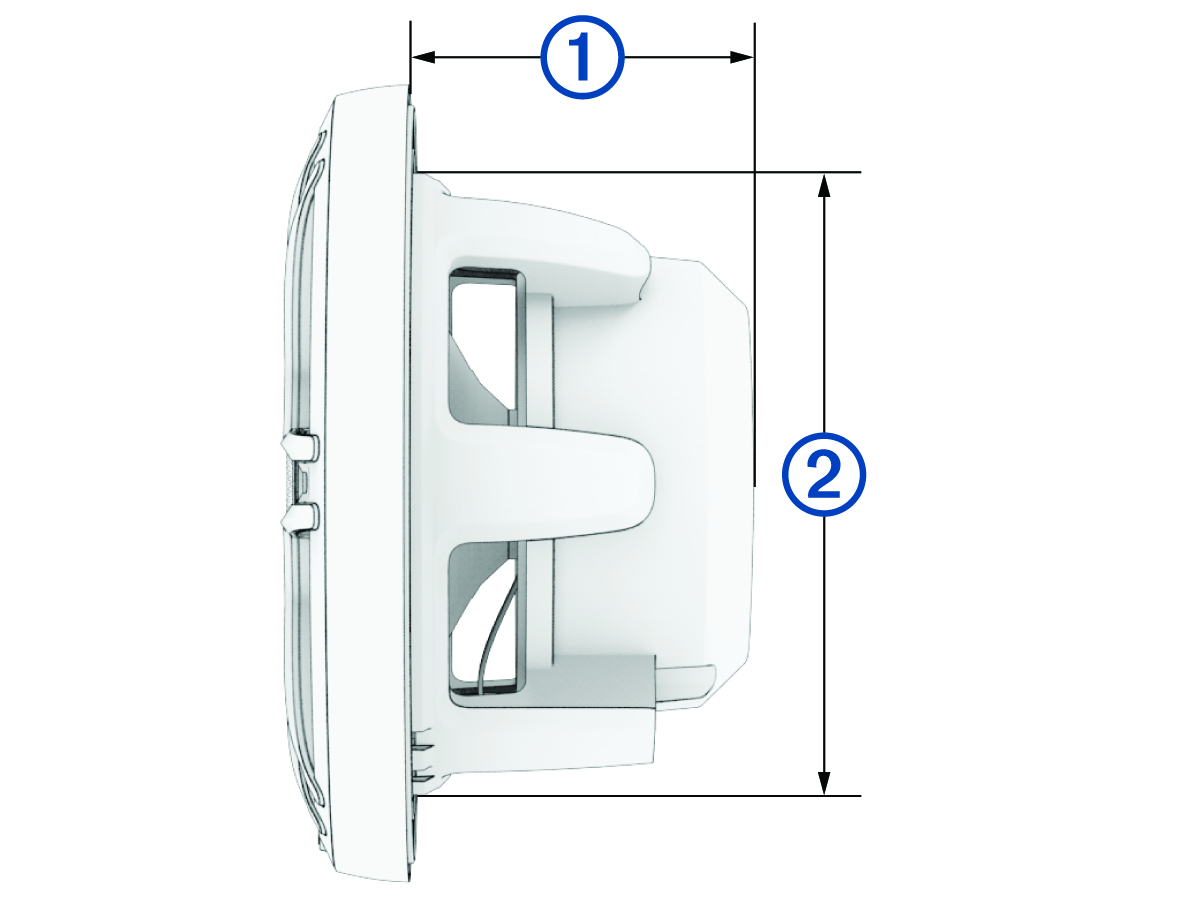

Side View
|
Dimension |
6.5" Speakers |
7.7" Speakers |
8.8" Speakers |
|---|---|---|---|
|
|
73.6 mm (27/8 in.) |
81.9 mm (3 1/4 in.) |
100.9 mm (4 in.) |
|
|
133 mm (5 1/4 in.) |
153 mm (6 in.) |
177 mm (7 in.) |
NOTE:
You must allow at least 3 mm (1/8 in.) of clearance beyond the depth of the speaker. The above measurements are nominal. Refer to the specifications table for clearance measurements.
