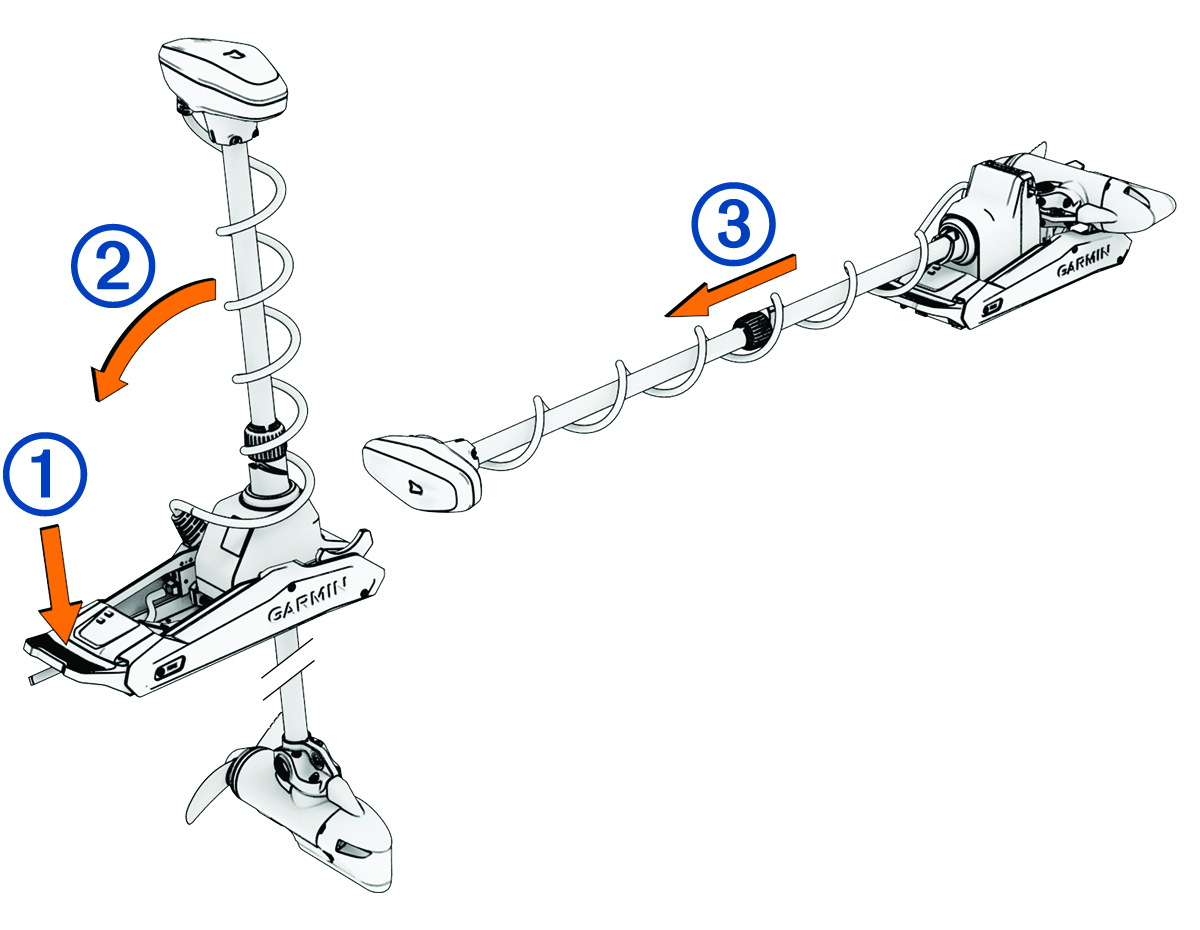

Stowing the Motor from the Deployed Position
-
Hold down the pedal to release the latch
.
NOTE: The motor should automatically steer to 90° for stowing. The propeller stow side can be configured in the settings menu. -
Tilt the shaft back
, and then raise the motor slowly while tilting the shaft to the horizontal position.
-
Slide the motor into the motor catch until it locks in the stowed position
.
Push forward along the length of the shaft, and then pull backward along the length of the shaft to ensure that the motor is firmly locked in place. If the motor is not firmly locked in the stowed position, the motor may deploy unexpectedly while in rough waters or trailering, which couild result in possible property damage or serious personal injury.
The depth adjustment collar should be moved as close to the base of the motor as possible. Failure to do so could cause unexpected trolling motor deployment, leading to potential property damage or serious personal injury.
