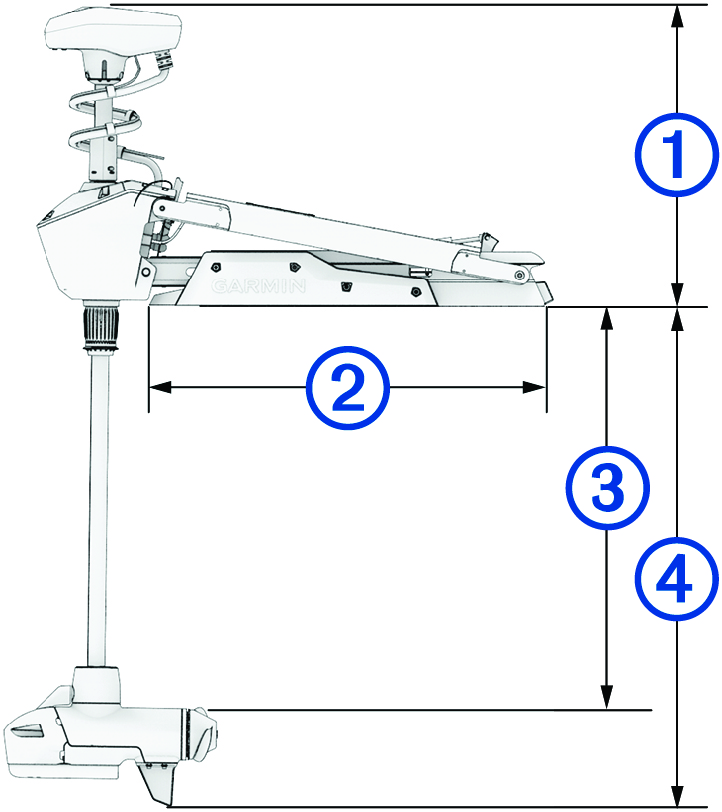

Deployed Dimensions
|
Item |
50 in. Model |
57 in. Model |
|---|---|---|
|
|
496 mm (19.52 in.) min. 746 mm (29.37 in.) max. |
496 mm (19.52 in.) min. 833 mm (32.80 in.) max. |
|
|
708 mm (27.87 in.) |
799 mm (31.46 in.) |
|
|
644 mm (25.35 in.) min. 895 mm (35.24 in.) max. |
730 mm (28.74 in.) min. 1065 mm (41.93 in.) max. |
|
|
835 mm (32.87 in.) min. 1080 mm (42.52 in.) max. |
930 mm (36.61 in.) min. 1259 mm (49.57 in.) max. |
|

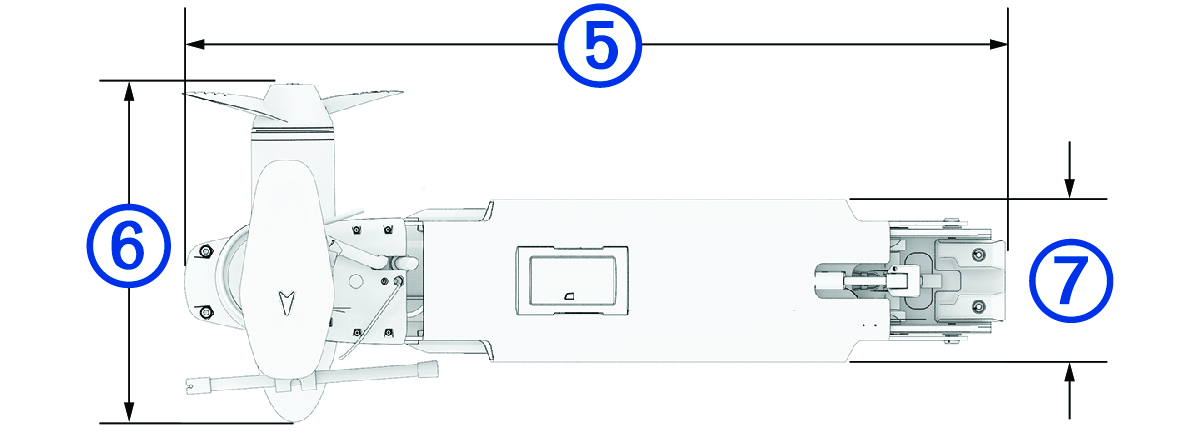

Item |
50 in. Model |
57 in. Model |
|---|---|---|
|
|
931 mm (36.65 in.) |
1021 mm (40.20 in.) |
|
|
421 mm (16.57 in.) |
421 mm (16.57 in.) |
|
|
203 mm (7.99 in.) |
203 mm (7.99 in.) |
