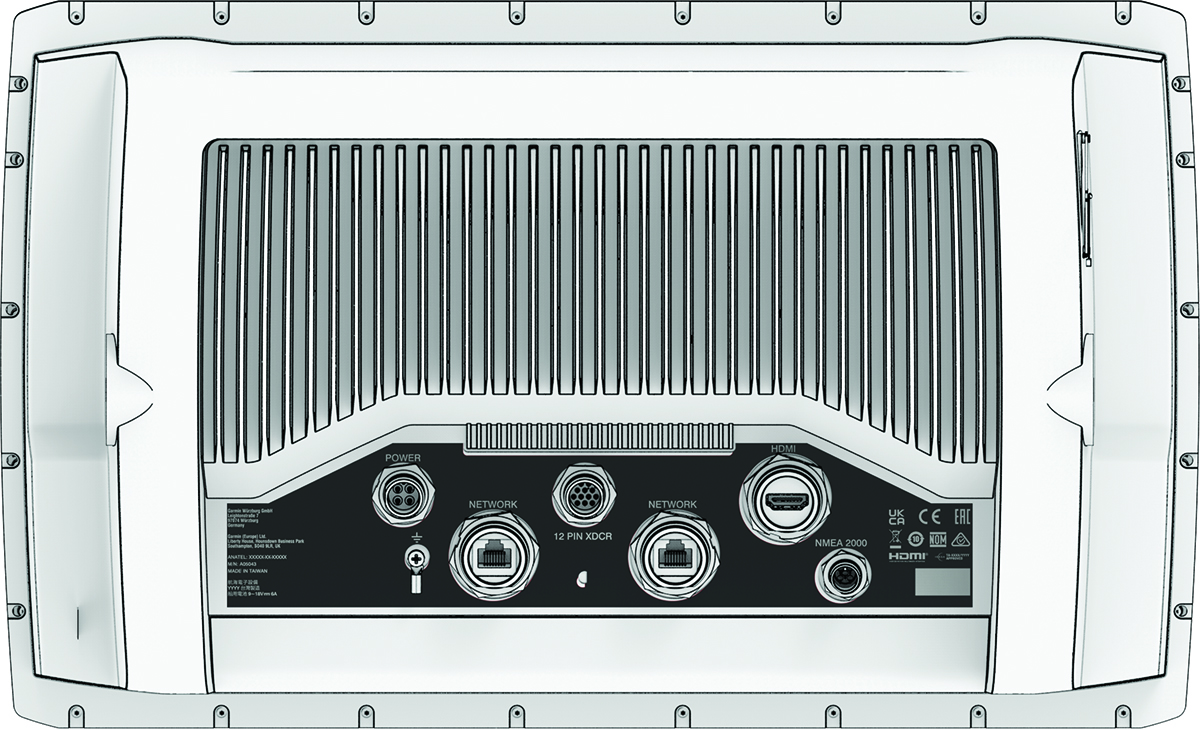

Connector View ECHOMAP Ultra 2 16Xsv models

|
POWER |
Power |
|---|---|
|
12 PIN XDCR |
12-pin transducer |
|
HDMI |
HDMI® video out |
|
|
Ground screw |
|
NETWORK |
Garmin® network cable port for connection to compatible LiveScope™, GCV™, and ECHOMAP™ devices NOTE:
This device is not compatible with some
Garmin Marine Network devices such as
GPSMAP®,
GSD™, and radar devices.
|
|
NMEA 2000 |
NMEA 2000® network |
