Installing the Controller on the Handlebar
The handlebar controller is packaged with three bushings, designed for 22 mm (7/8 in.), 25 mm (1 in.), and 32 mm (11/4 in.) diameter handlebars.
We recommend installing the handlebar controller close to the left handle of your vehicle, within reach of your thumb.
-

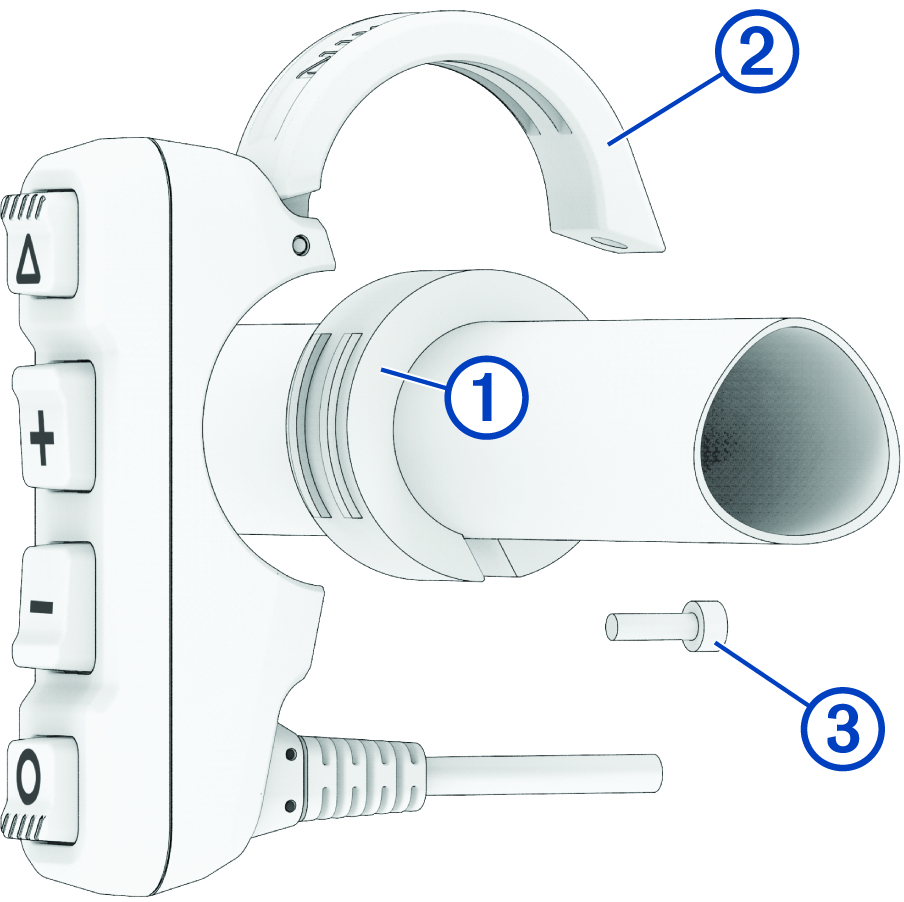

Place the bushing
on the handlebar, in the mounting location for the controller.
-
Place the handlebar controller mounting clamp
over the bushing, making sure the ridges on the bushing match up with the grooves in the mounting clamp.
-
Using the included hex wrench, install the included screw
.
