Connector View

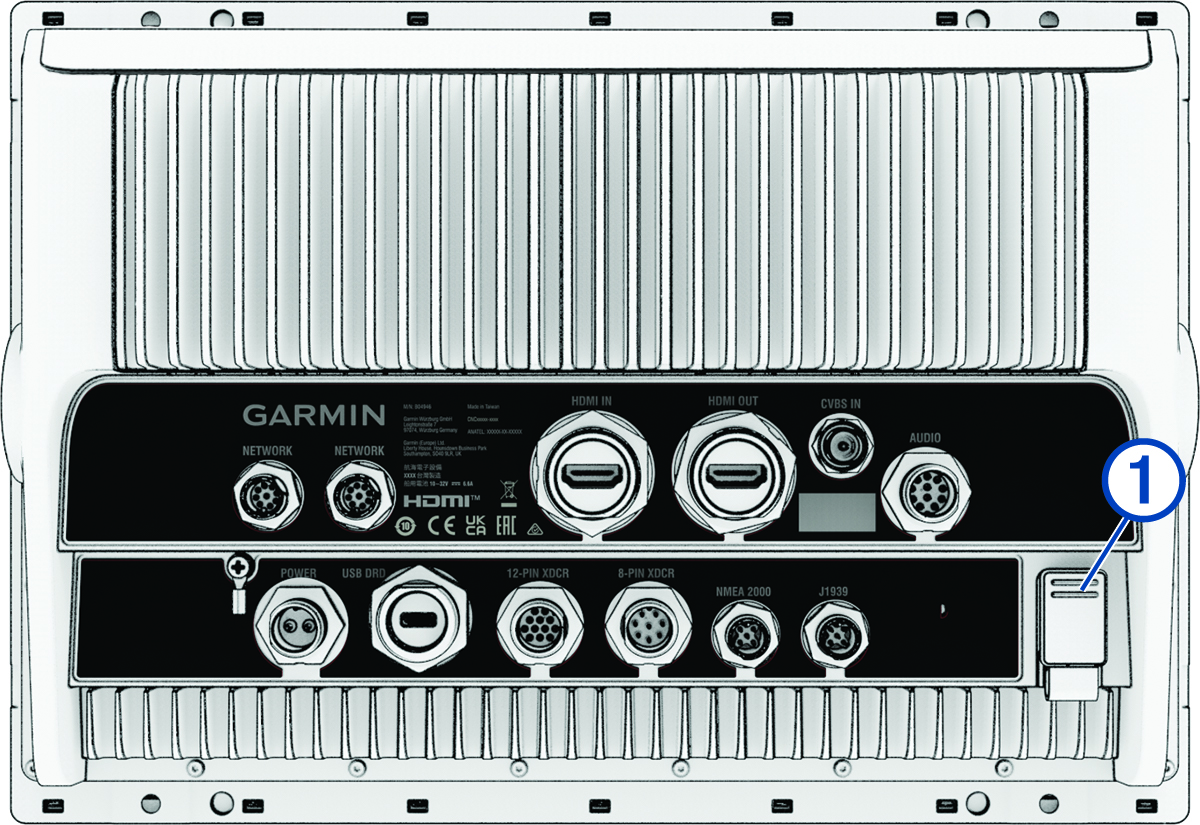

The connectors and locations are the same across all of the GPSMAP® 9000xsv series models. A GPSMAP 9x13xsv model is shown below.
|
|
Two internal card readers. Each supports up to a 1 TB microSD® memory card, formatted to exFAT with speed class 10 or higher. |
|---|---|
|
POWER |
Power |
|
NETWORK |
Garmin BlueNet™ network ports (Garmin BlueNet Network Considerations) |
|
HDMI IN |
HDMI® input compatible with HDMI devices up to 4K at 60 fps |
|
HDMI OUT |
HDMI out |
|
USB DRD |
Dual-Role-Data (DRD) USB-C® that can be configured as either a host or a client. |
|
AUDIO |
NMEA® 0183 and audio out |
|
CVBS IN |
Composite video in |
|
NMEA 2000 |
NMEA 2000® network |
|
8-PIN XDCR |
8-pin transducer |
|
12-PIN XDCR |
12-pin transducer |
|
J1939 |
J1939 network |
