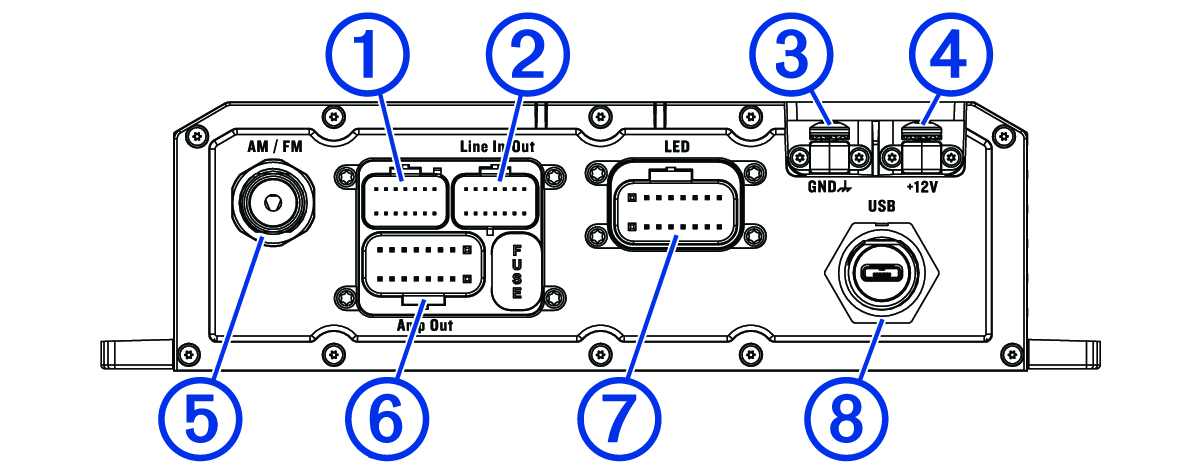

Port Identification
|
Item |
Description |
|---|---|
|
FUSE |
Contains the 15 A fuse for the LED outputs. |
|
|
Not used. |
|
|
Connects the device to the auxiliary in and line/subwoofer out wiring harness. |
|
|
Connects the device to the ground terminal wire (GND). |
|
|
Connects the device to the +12V terminal wire. |
|
|
Connects the device to the AM/FM antenna. |
|
|
Connects the device to the speaker wiring harness. |
|
|
Connects the device to the LED wiring harness. |
|
|
Connects the device to an optional USB accessory. |
