Device Overview

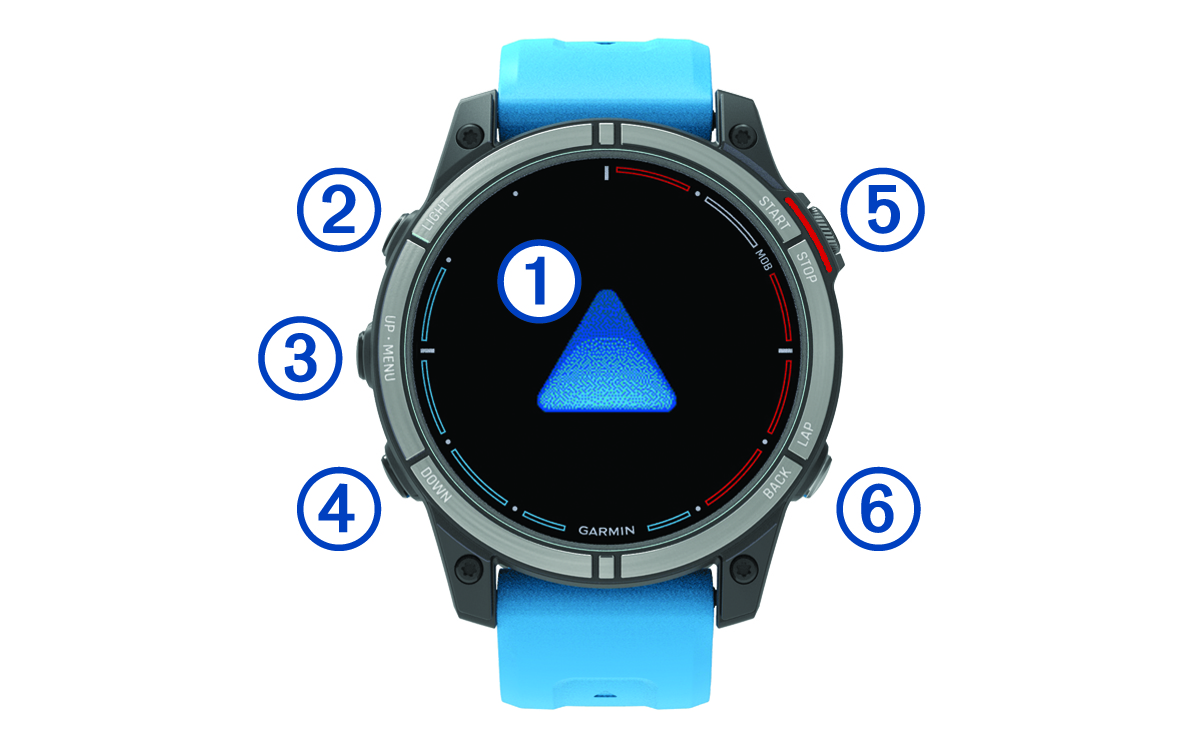

Front view of the device with callouts
Callout number 1 Touchscreen
  • Tap to choose an option in a menu.

  • Hold the watch face data to open the glance or feature.

    NOTE: This feature is not available on all watch faces.
  • Swipe up or down to scroll through the glance loop and menus.

  • Swipe right to return to the previous screen.

  • Cover the screen with your palm to return to the watch face and turn down the screen brightness.

Callout number 2 LIGHT
  • Press to turn on the device.

  • Press to illuminate the screen.

  • Quickly press twice to turn on the flashlight.

  • Hold to view the controls menu.

Callout number 3 UP·MENU
  • Press to scroll through the glance loop and menus.

  • Hold to view the menu.

Callout number 4 DOWN
  • Press to scroll through the glance loop and menus.

  • Hold to view the music controls from any screen.

Callout number 5 START·STOP
  • Press to choose an option in a menu.

  • Press to view the activity list and start or stop an activity.

  • Hold to mark your current location as a man overboard (MOB) location and activate navigation.

Callout number 6 BACK·LAP
  • Press to return to the previous screen.

  • Press to record a lap, rest, or transition during a multisport activity.

  • Hold to view a list of your recently used apps from any screen.
