Buttons

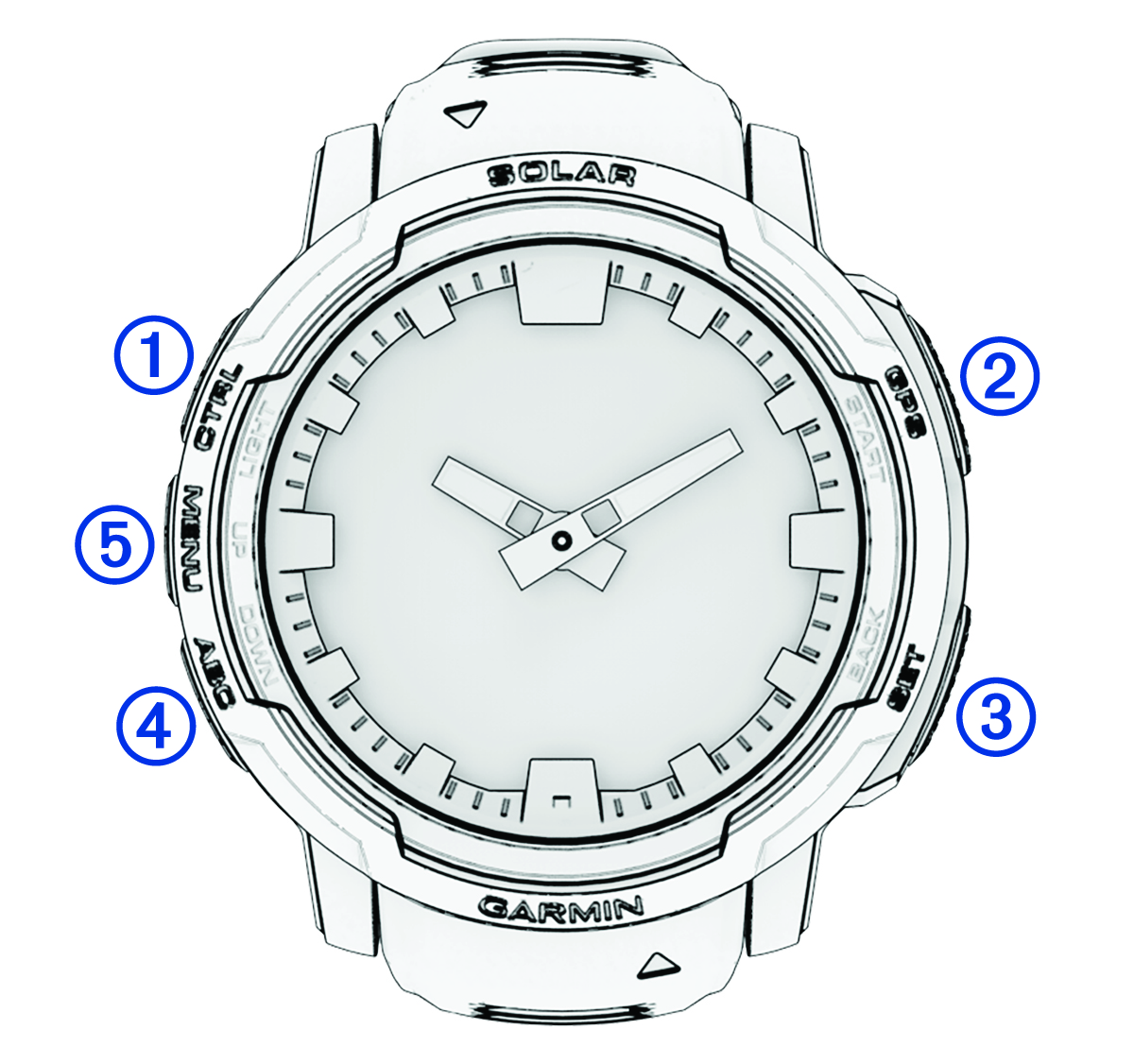

Front view of device with callouts

Callout number 1

LIGHT

CTRL

Press to turn the device on.

Press to turn the backlight on and off.

Hold to view the controls menu.

Callout number 2

START

GPS

Press to view the activity list and start or stop an activity.

Press to choose an option in a menu.

Hold to view GPS coordinates and save your location.

Callout number 3

BACK

SET

Press to return to the previous screen.

Hold to view the clock menu.

Callout number 4

DOWN

ABC

Press to scroll through the glance loop and menus.

Hold to view the altimeter, barometer, and compass (ABC) screen.

Callout number 5

UP

MENU

Press to scroll through the glance loop and menus.

Hold to view the menu.
