Overview

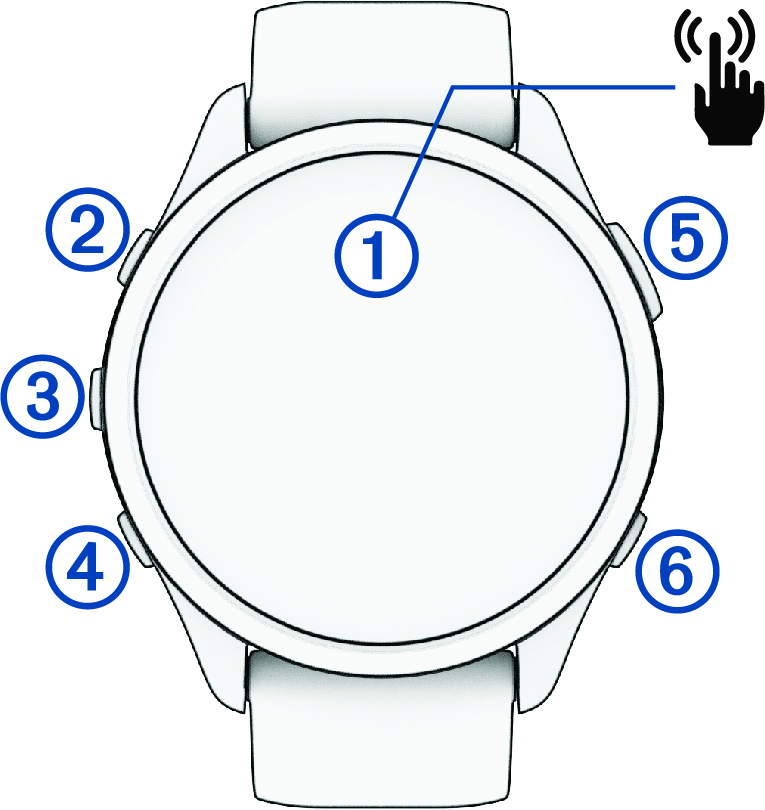

Front view of the device with callouts
Callout number 1 Touchscreen
  • Tap to choose an option in a menu.

  • Tap to open the glance to view more data.

  • Swipe up or down to scroll through the glance loop and menus.

  • Swipe right to return to the previous screen.

  • Cover the screen with your palm to quickly turn off the display and return to the watch face.

Callout number 2 LIGHT
  • Hold to turn the watch on.

  • Press to turn the display on and off.

  • Hold to view the controls menu for quick access to frequently used functions.

Callout number 3 UP
  • Press to scroll through the glances, data screens, options, and settings.

  • Hold to view the menu.

Callout number 4 DOWN
  • Press to scroll through the glances, data screens, options, and settings.

  • Hold to open the music controls (Music).

Callout number 5 START · STOP
  • Press to start and stop the activity timer.

  • Press to choose an option or to acknowledge a message.

Callout number 6 BACK
  • Press to return to the previous screen.

  • Press to record a lap or rest during an activity, or to advance to the next stage of a workout.

    You can select Undo lap symbol to discard a lap for certain activities (How can I undo a lap button press?).
