Autopilot Overlay Bar

NOTE: Not all options are available on all autopilot models.

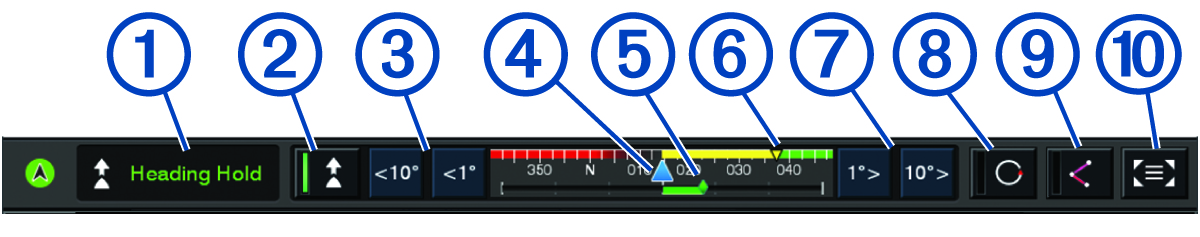

Autopilot bar with callouts

Callout number 1

Autopilot status

Callout number 2

Engages and disengages heading hold

Callout number 3

Steers left

Callout number 4

Actual heading

Callout number 5

Rudder position indicator (available only when a rudder sensor is connected)

Callout number 6

Intended heading (heading the autopilot is steering toward)

Callout number 7

Steers right

Callout number 8

Engages the last used steering pattern

Callout number 9

Engages follow route mode (available only when autopilot is in standby status and navigating using Go To, Route To, or Auto Guidance)

Callout number 10

Opens the full autopilot screen and menu
