Autopilot Screen

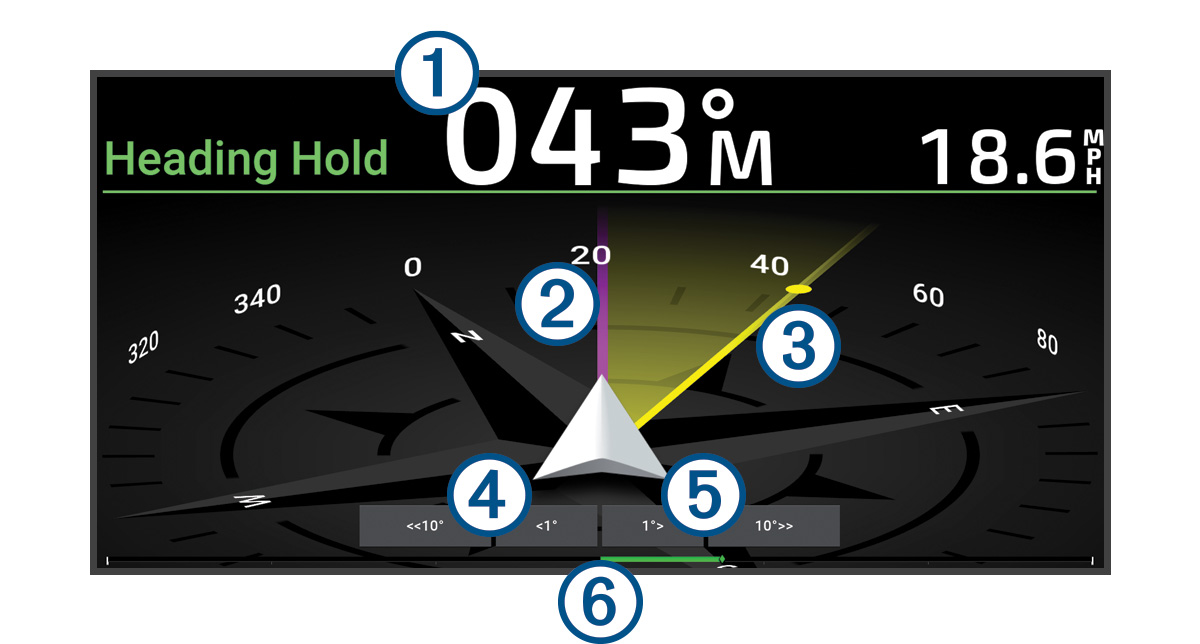

Autopilot screen with callouts

Callout number 1

Actual heading (when in standby mode)

Intended heading (when engaged)

Callout number 2

Actual heading

Callout number 3

Intended heading (heading the autopilot is steering toward)

Callout number 4

Step turn to port (to adjust the intended heading by amount shown)

Callout number 5

Step turn to starboard (to adjust the intended heading by amount shown)

Callout number 6

Rudder position indicator (available when a rudder sensor is connected)
