Mercury Troll Control Features
You are responsible for the safe and prudent operation of your vessel. The Mercury® troll control features do not steer the boat for you and do not avoid navigational hazards. Failure to safely operate your boat could result in an accident causing property damage, serious personal injury, or death.
When connected to a compatible Mercury engine, you can use the Mercury Troll overlay to set and adjust the trolling speed from the chartplotter.
Adding the Mercury Troll Control Overlay
When connected to a compatible Mercury engine, you can set and adjust the target speed using the Mercury Troll overlay on the chartplotter.

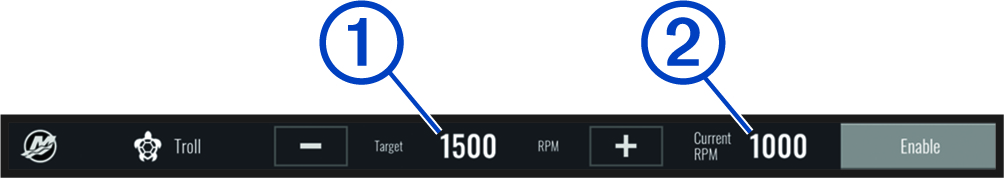

Mercury Troll Overlay
When connected to a compatible Mercury engine, you can use the Mercury Troll overlay on the chartplotter to set a target speed.
|
Select to decrease the target speed |
---|---|
|
Target speed |
|
Select to increase the target speed |
|
Actual speed |
Enable |
Select to engage the Mercury Troll feature |
Disable |
Select to disengage the Mercury Troll feature |
