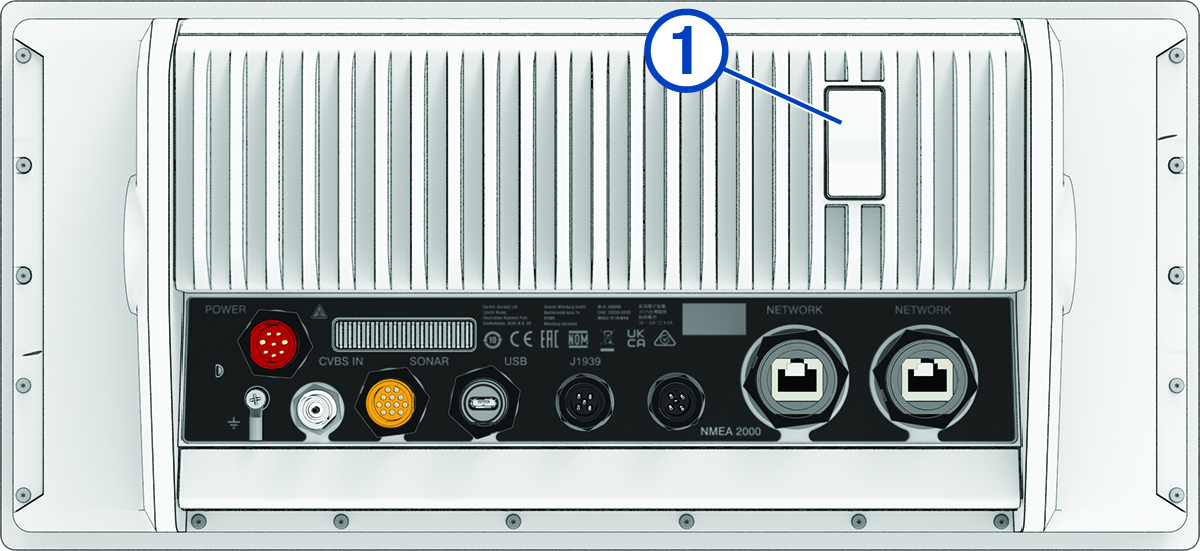

GPSMAP 15x3 Connector View
|
|
2 microSD® memory card slots, 32 GB max. card size, formatted to FAT32 or exFAT with speed class 10 or higher. |
|---|---|
|
POWER |
Power and NMEA® 0183 network |
|
|
Ground screw (optional) |
|
CVBS IN |
Composite video in |
|
SONAR |
12-pin transducer |
|
USB |
Micro USB for compatible Garmin® card reader1 |
|
J1939 |
Engine or J1939 network |
|
NMEA 2000 |
NMEA 2000® network |
|
ETHERNET |
Garmin Marine Network |
1 Only compatible
Garmin card readers recommended. Third-party card readers are not guaranteed to be fully compatible.
