Mounting and Powering the dēzl OTR620 / LGV620 Device in Your Vehicle

WARNING

This product contains a lithium-ion battery. To prevent the possibility of personal injury or product damage caused by battery exposure to extreme heat, store the device out of direct sunlight.

Before you use your device on battery power, you should charge it.

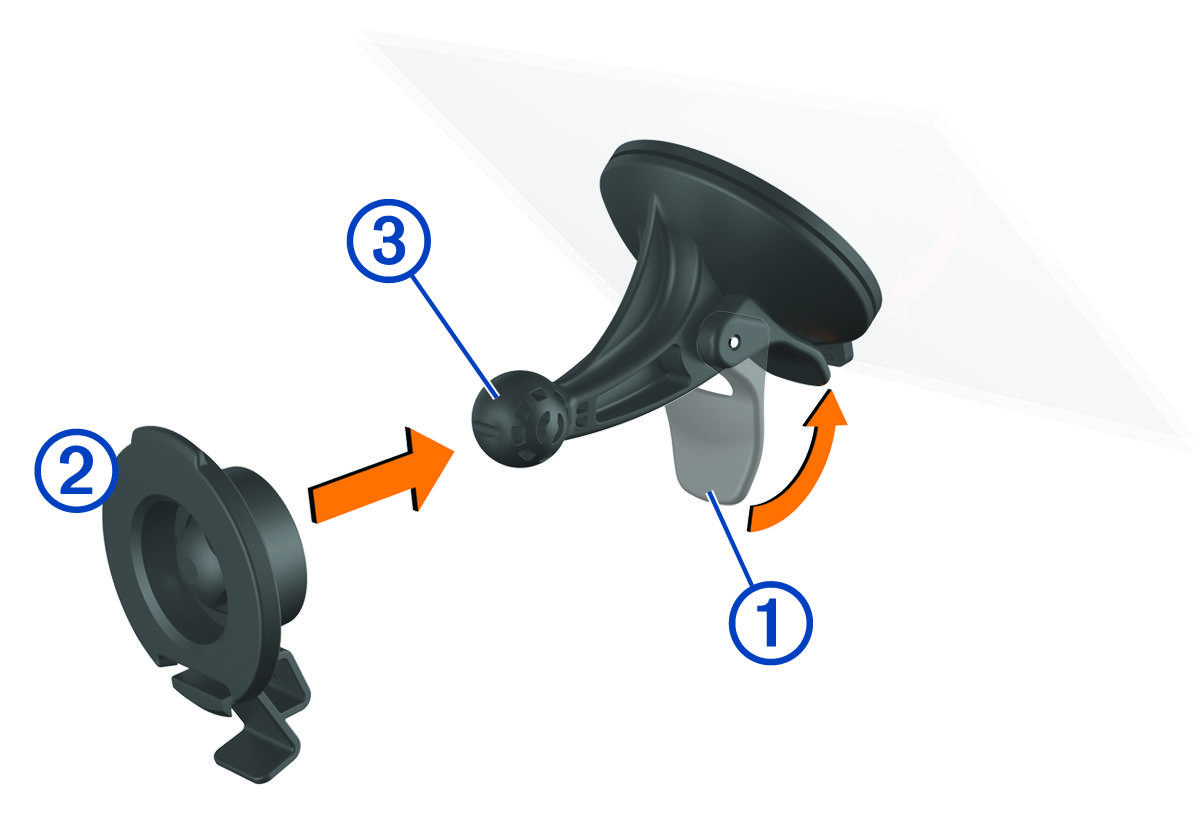

  1. Press the suction cup to the windshield, and flip the lever Callout number 1 back toward the windshield.

    Mount assembly with callouts
  2. Press the mount Callout number 2 onto the suction cup ball Callout number 3 until it snaps into place.

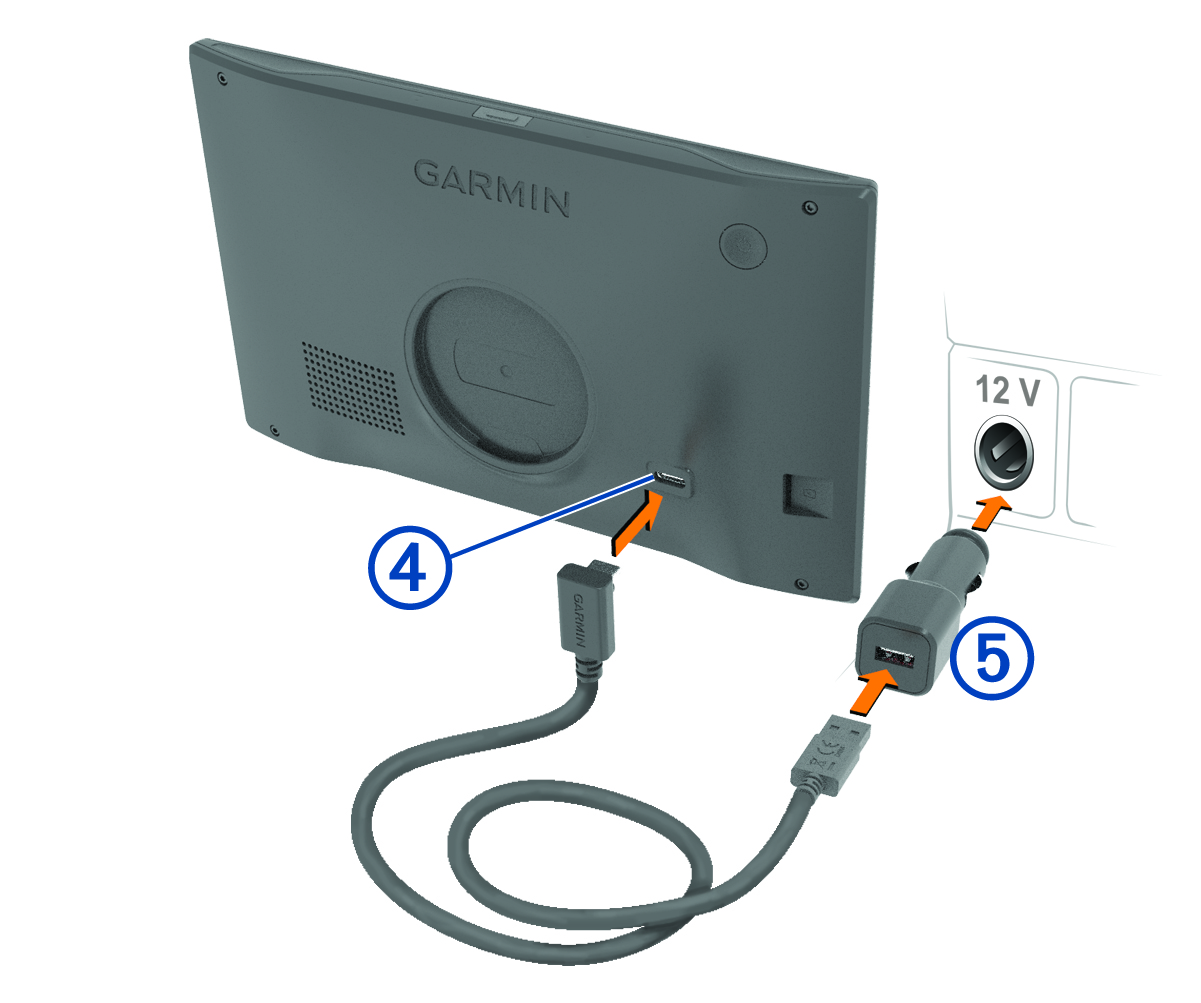

  3. Plug the vehicle power cable into the USB power and data port Callout number 4 on the device.

    Power cable being attached to the device with callouts
  4. Plug the other end of the vehicle power cable into the vehicle power adapter Callout number 5.
  5. Plug the vehicle power adapter into a power outlet in your vehicle.
  6. Fit the tab on the top of the mount into the slot on the back of the device, and press the bottom of the mount into the device until it clicks.

    Mount being attached to the device with arrows
