Changing the Range of VHF Transmissions

By default, the radio operates in low-power mode (1 W) on all channels except channel 16. On channels that support both modes, you can switch between high-power and low-power mode.

NOTE: If you switch to high-power mode and change to a different channel, the radio remains in high-power mode if the new channel allows it.

Changing Transmit Power Using the Fist Mic

Press Concentric circles.

If the current VHF channel allows it, the radio switches between high-power mode and low-power mode.

Changing Transmit Power Using the Touchscreen

Select 1.

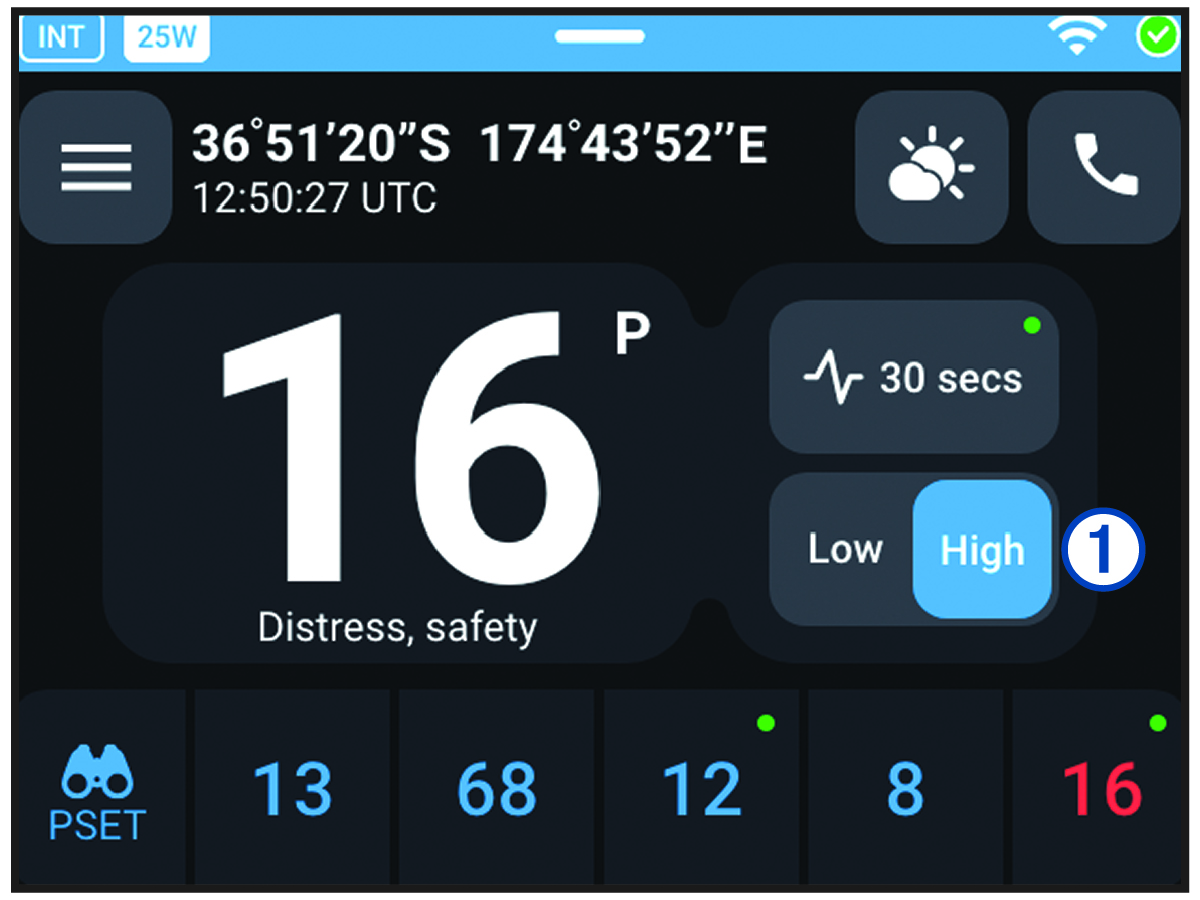

VHF Radio screen with callout.

If the current VHF channel allows it, the radio switches between high-power mode and low-power mode.
