Placing the Tail Wrap on Your Horse

CAUTION
Some horses may experience skin irritation after prolonged use of the tail wrap, especially if the horse has sensitive skin or allergies. If you notice any skin irritation, remove the tail wrap and give the skin time to heal. To help prevent skin irritation, ensure the tail wrap is clean and dry, and do not overtighten the tail wrap on the tail. For more information, go to garmin.com/blazecare.
CAUTION
To help prevent possible skin irritation, the tail wrap should only be worn for up to 10 hours in a 24-hour period.
CAUTION
This device is not intended for human use. Do not attempt to use on any person.
NOTICE

Minimize exposure to sunscreen, bleach, mosquito repellant, and chemicals found in certain soaps and first aid ointments. Specifically, propylene glycol, dipropylene glycol, and ethylenediaminetetraacetic acid (EDTA) can damage the tail wrap.

Before you place the tail wrap on your horse, ensure the sensor is firmly placed in the tail wrap with the arrows aligned (Installing the Sensor in the Tail Wrap).

  1. Slide the open wrap under the horse's tail until it is aligned with the center of the tail.

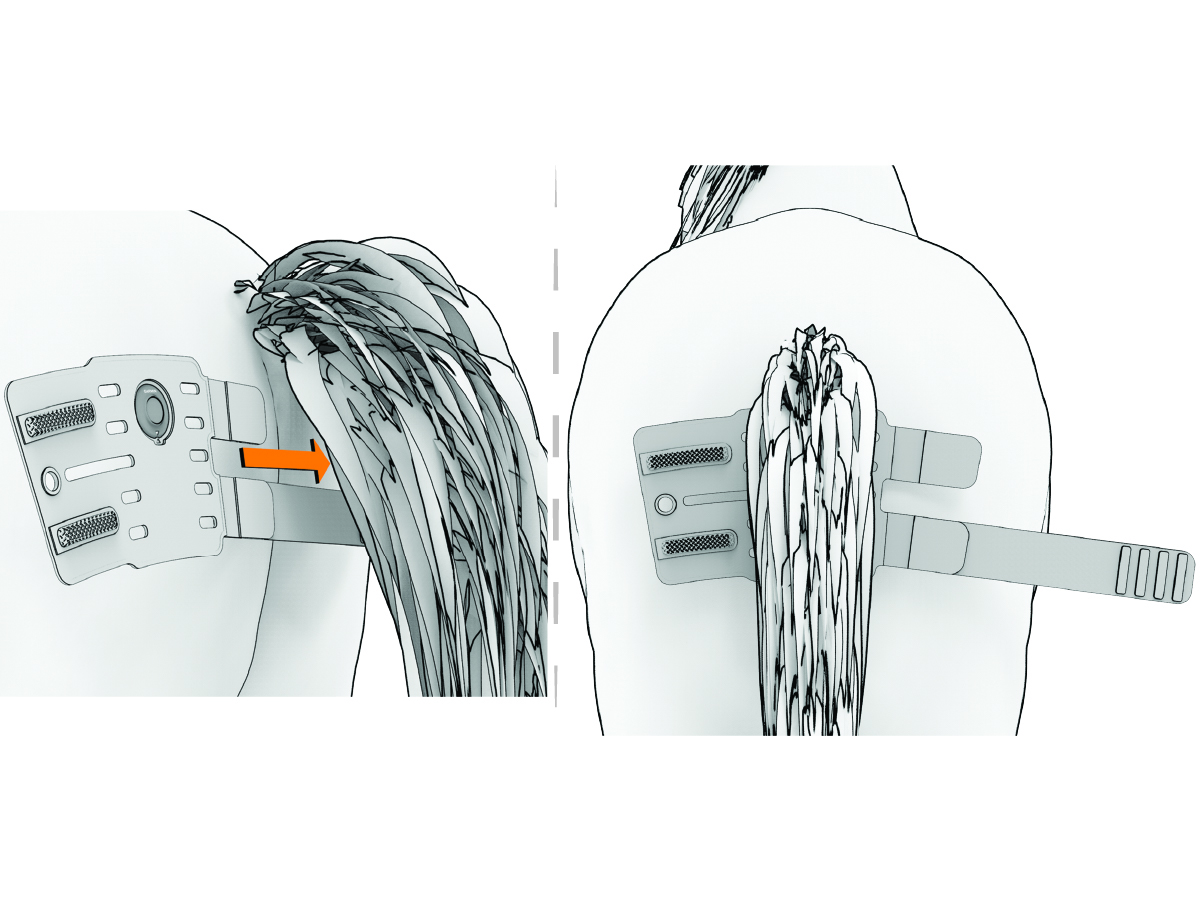

    Sensor placement on the horse
  2. Secure the tail wrap using the two main straps with hook and loop closure.

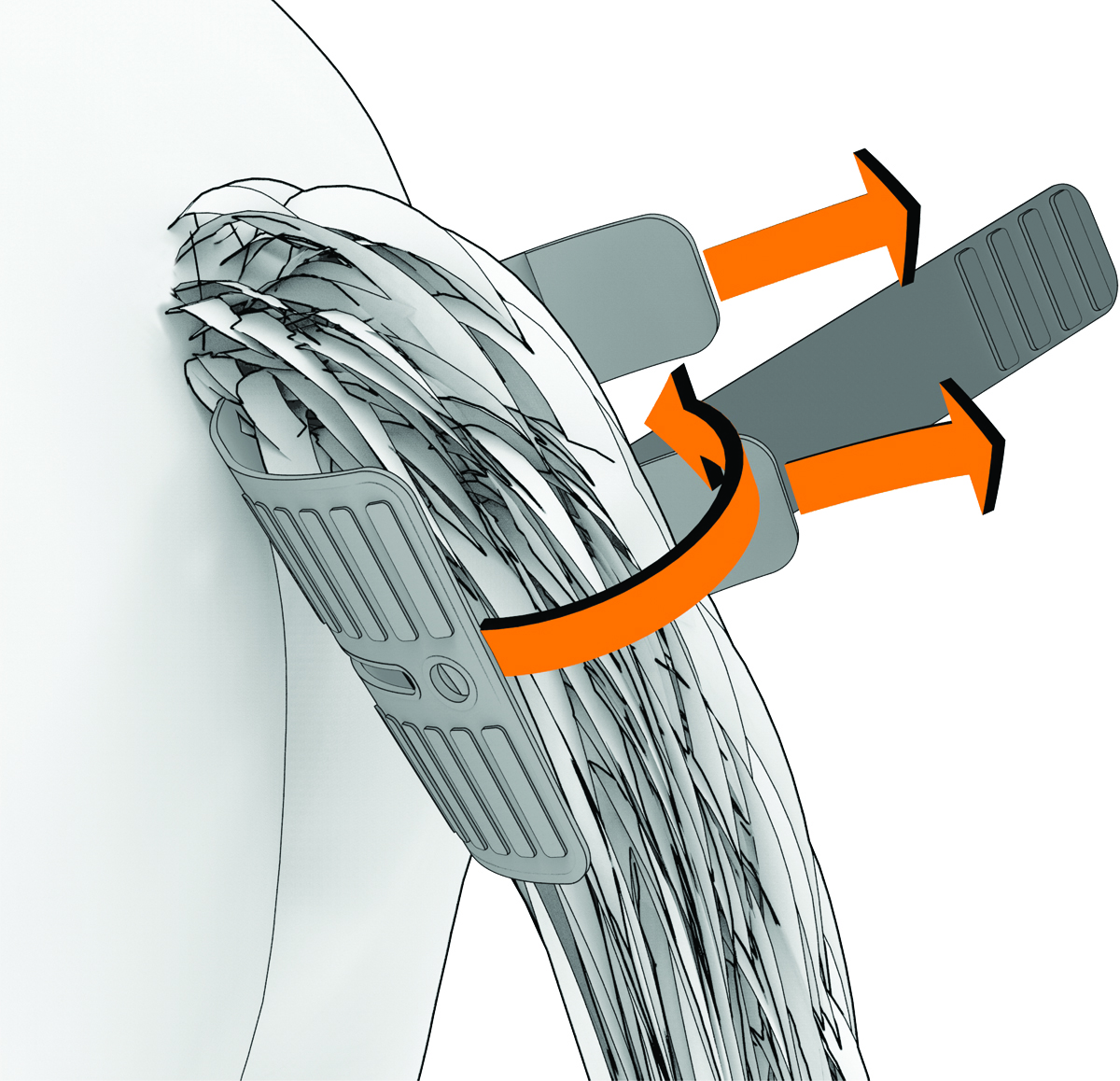

    The device being put on the horse
  3. Wrap the extension strap around the tail wrap as many times as needed to ensure a good fit and attach it using the hook and loop closure.

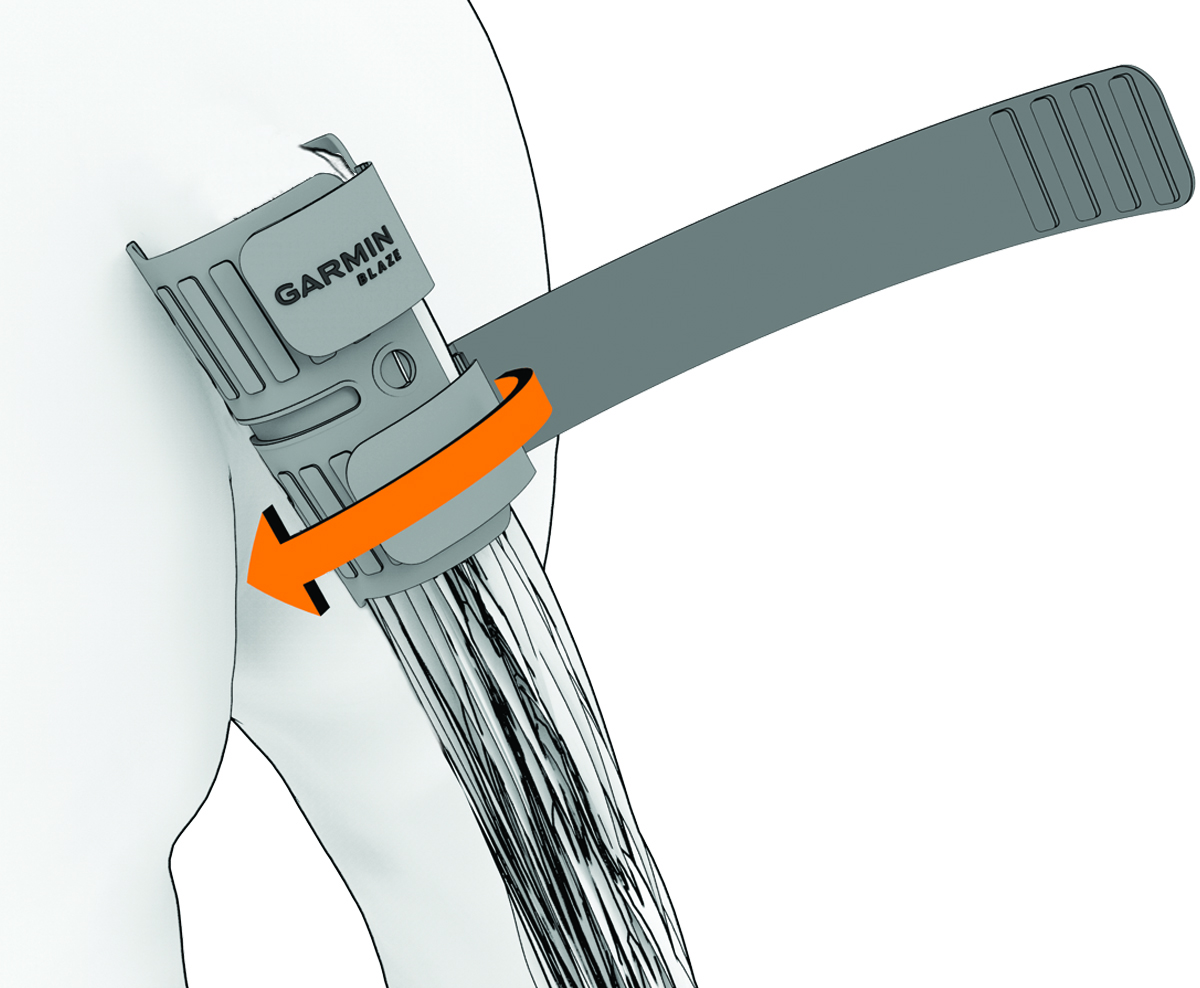

    Last strap added to tail wrap
  4. Ensure the wrap is snug on the horse's tail.

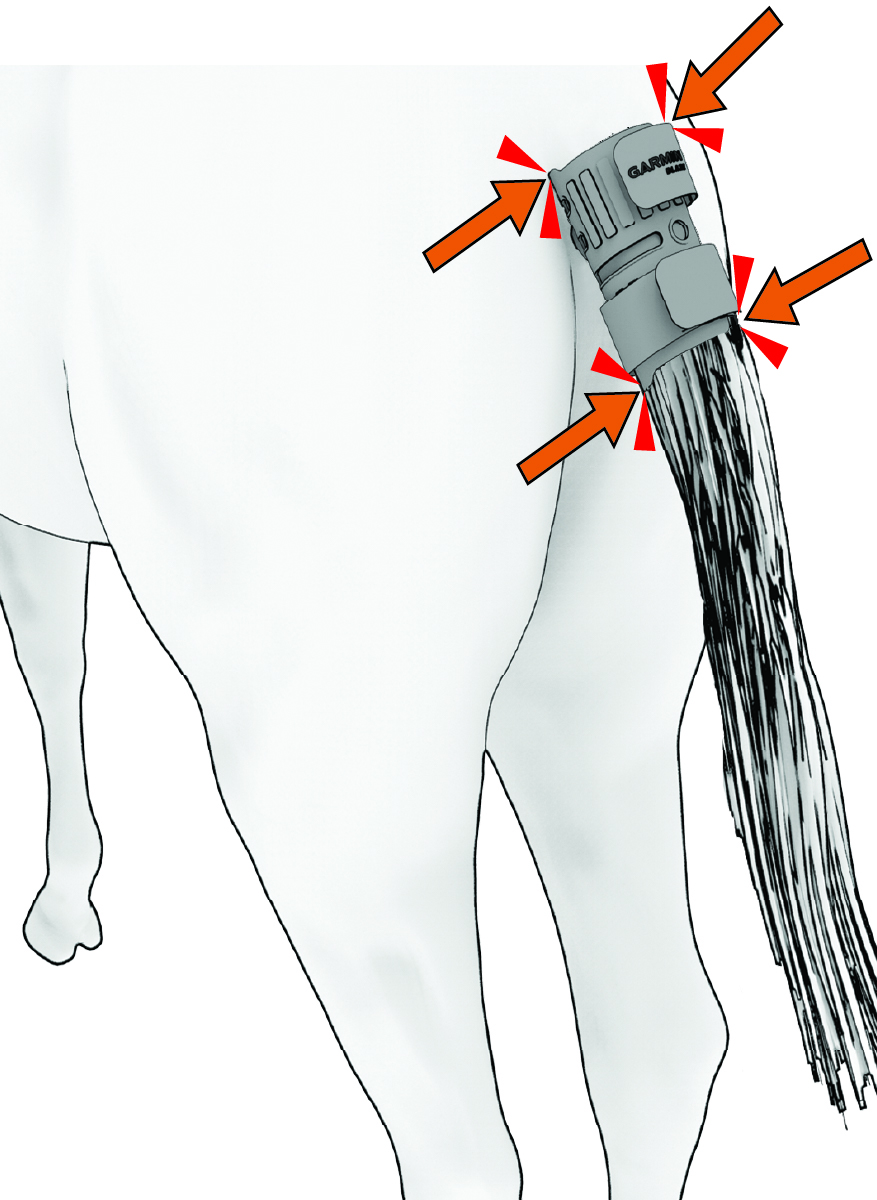

    View of the device fit onto the horse

Tail Wrap Fit Considerations

When placing the Blaze™ equine wellness system on your horse's tail, observe these considerations before going for a ride.

  • Ensure the sensor is centered on the underside of the horse's tail.

  • Ensure the tail wrap is securely fastened with a snug fit.

  • Wrap the extension strap around the entire tail wrap after you have fastened the tail wrap.

  • Ensure the Garmin® logo is displayed right side up, on the front or back of the tail, when you place the tail wrap on the horse.

  • Ensure the tail wrap is clean.

  • Wipe down the gel pads on the tail wrap before each use.
