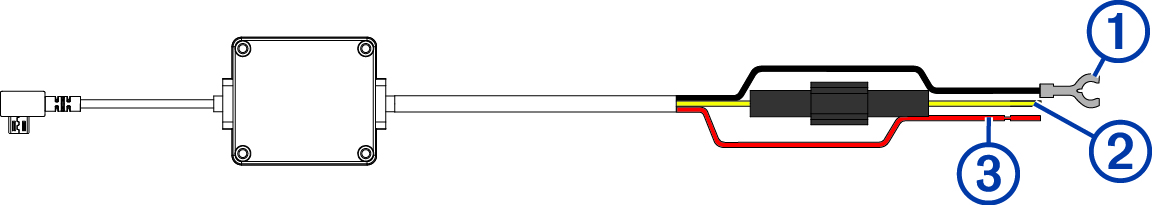

Parking Mode Cable Wiring Diagram
![Wiring diagram of the parking mode cable with callouts](../Shared/GUID-816847BA-4858-490C-8D56-30EA12A98585-high.jpg)
Item |
Wire Color |
Wire Function |
---|---|---|
|
Black |
Ground |
|
Yellow |
Battery 12 V |
|
Red |
Accessory 12 V |
