TACTIX 8 SERIES Owner’s Manual

Water Sports

Viewing Your Water Sport Runs

Your watch records the details of each water sport run using the auto run feature. This feature automatically records new runs based on your movement. The activity timer pauses when you stop moving. The activity timer starts automatically when your movement speed increases. You can view run details from the paused screen or while the activity timer is running.

  1. Start a water sport activity, such as water skiing.
  2. Hold .
  3. Select View Runs.
  4. Press or to view details of your last run, your current run, and your total runs.

The run screens include time, distance traveled, maximum speed, and average speed.

Sailing

Tack Assist

CAUTION

The watch uses GPS-based course over ground to determine your course in the tack assist feature, and does not account for other factors that can affect your boat's direction, such as currents and tides. You are responsible for the safe and prudent operation of your vessel.

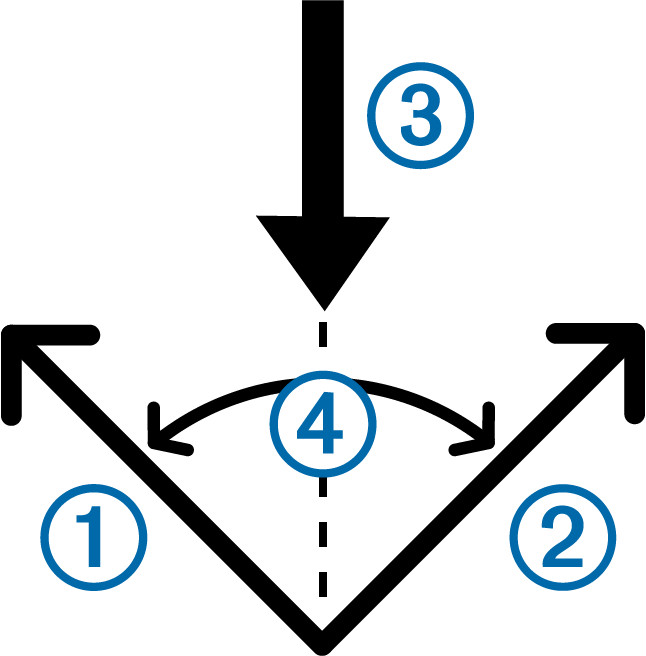

While cruising or racing into the wind, the tack assist feature can help you determine if your boat is being lifted or headed. When you calibrate tack assist, the watch captures your boat's port and starboard course over ground (COG) measurements, and uses the COG data to calculate the mean true wind direction and the boat's tack angle .

The watch uses this data to determine whether your boat is being lifted or headed due to wind shifts.

By default, the tack assist feature is set to automatic. Each time you calibrate the port or starboard COG, the watch recalibrates the opposite side and true wind direction. You can change the tack assist settings to enter a fixed tack angle or true wind direction.

Calibrating the Tack Assist

  1. From the watch face, select .
  2. Select Water Sports, and select Sail.
  3. Select or to view the tack assist screen.

NOTE: You may need to add the tack assist screen to the data screens for the activity (Customizing the Data Screens).

  1. Select .
  2. Select an option:
    • To calibrate the starboard side, select .
    • To calibrate the port side, select .

TIP: If the wind is coming from the starboard side of the vessel, you should calibrate starboard. If the wind is coming from the port side of the vessel, you should calibrate port.

  1. Wait while the device calibrates the tack assist.

An arrow appears and indicates if your boat is being lifted or headed.

Entering a Fixed Tack Angle

  1. From the watch face, press .
  2. Select Water Sports, and select Sail.
  3. Press or to view the tack assist screen.
  4. Hold .
  5. Select Tack Angle > Angle.
  6. Press or to set the value.

Entering a True Wind Direction

  1. From the watch face, press .
  2. Select Water Sports, and select Sail.
  3. Press or to view the tack assist screen.
  4. Hold.
  5. Select True Wind Direction > Fixed.
  6. Press or to set the value.

Tips for Getting the Best Lift Estimate

To get the best lift estimate when using the tack assist feature, you can try these tips. See Entering a True Wind Direction and Calibrating the Tack Assist for more information.

  • Enter a fixed tack angle, and calibrate the port side.
  • Enter a fixed tack angle, and calibrate the starboard side.
  • Reset the tack angle, and calibrate both the port and starboard side.
