Pedal Status LED
LED flashes indicate the pedal status, including issues that require your attention. Error codes are cleared after the issue is resolved and you have synced your Rally system with the Garmin Connect app or your compatible Garmin device. The

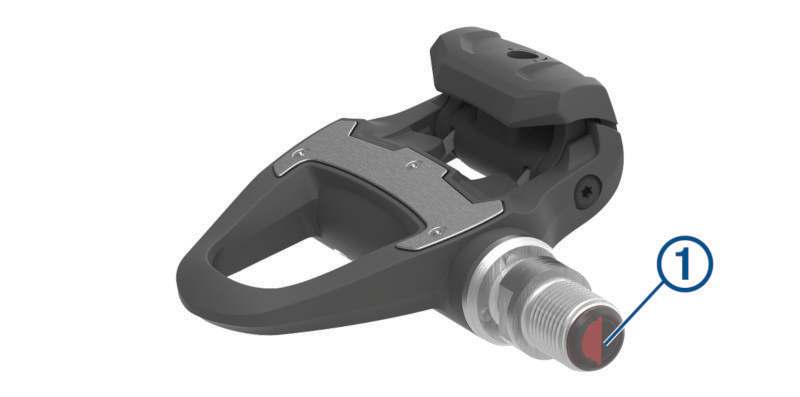

LED is located on the inboard end of the spindle
.
|
LED Activity |
Status |
|
1 red flash |
The Rally system is active and working properly. |
|
3 green flashes every 5 seconds |
The pedal is searching for the other paired pedal. |
|
1 long green flash |
The left pedal is connected to the right pedal. |
|
Alternating red and green flashes |
A software update or settings sync is in progress. |
|
20 green flashes |
The software update or settings sync was successful. |
|
20 red flashes |
The software update or settings sync has failed. The left pedal is unable to find the right pedal. |
