RALLY RS/RK/XC Owner’s Manual

Adjusting the Release Tension

NOTICE

Do not overtighten the release tension screw on the bottom of the pedal. The release tension should be adjusted equally for both pedals.

Rally RS/RK

You can use a 3 mm hex key to adjust the release tension of each pedal.

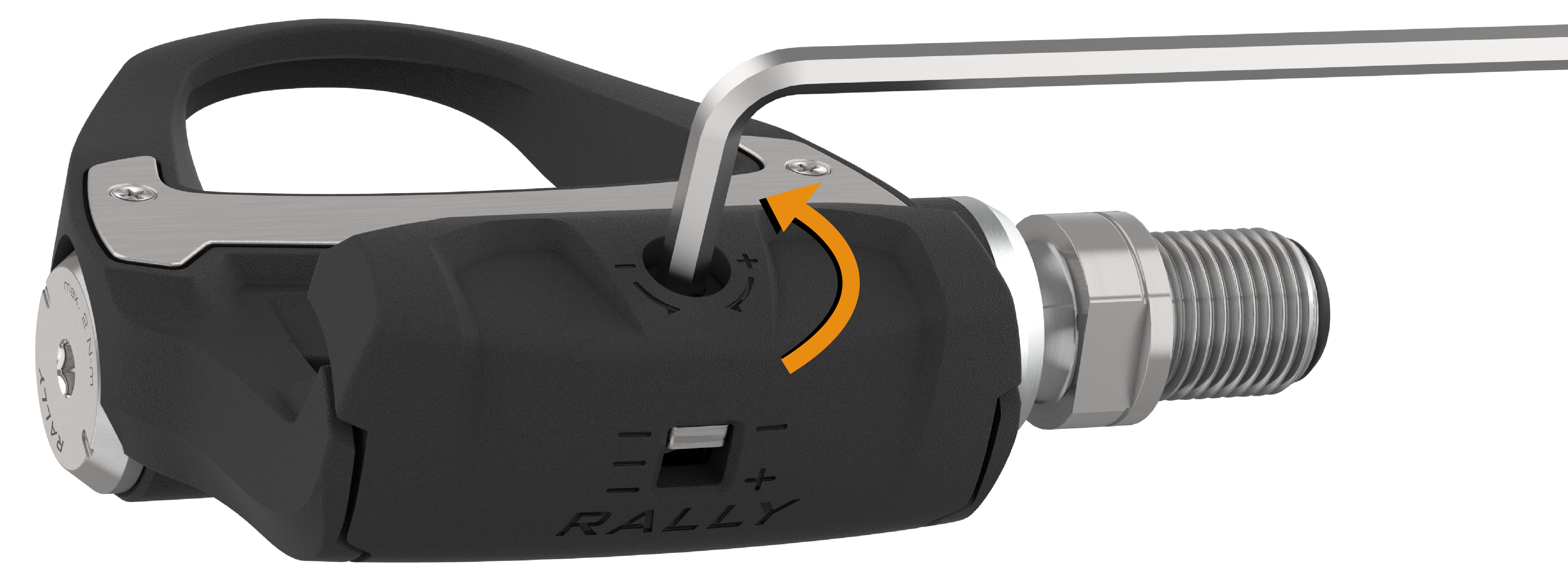

  • For a tighter feel, rotate the hex key clockwise to increase the release tension.

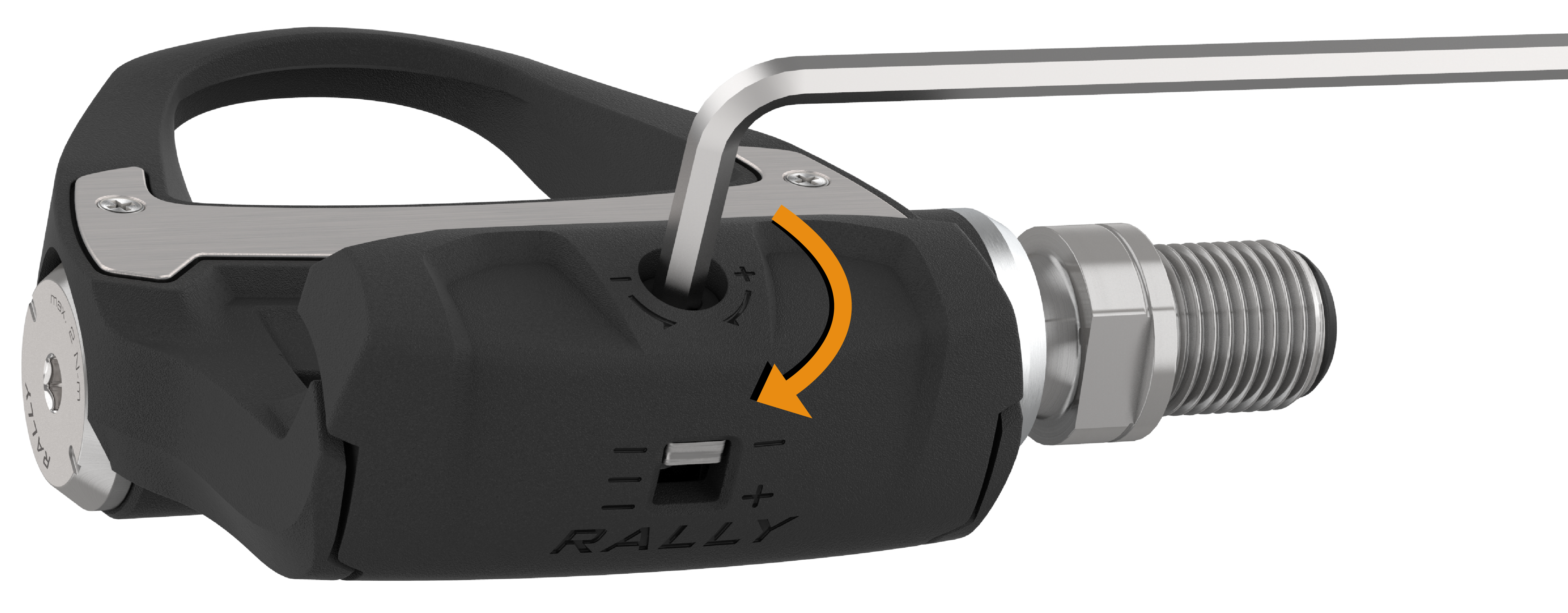

  • For a lighter feel, rotate the hex key anti-clockwise to decrease the release tension.

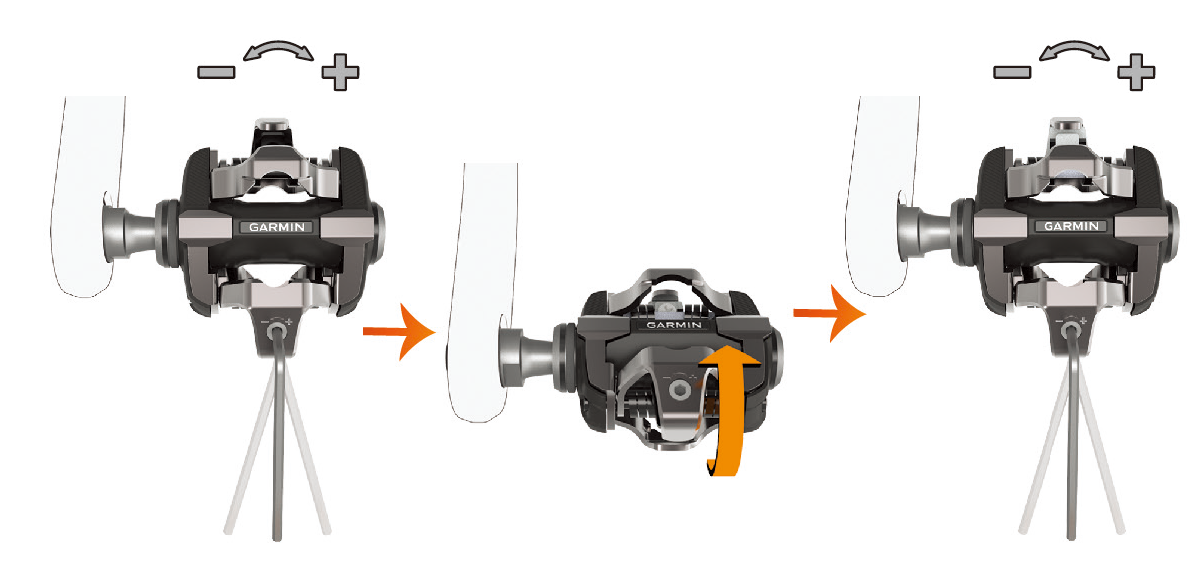

Rally XC

You can use a 3mm hex key to adjust the pedal tension on both sides of both pedals.

  • For a tighter feel, rotate the hex key clockwise to increase the release tension.
  • For a lighter feel, rotate the hex key anti-clockwise to decrease the release tension.
