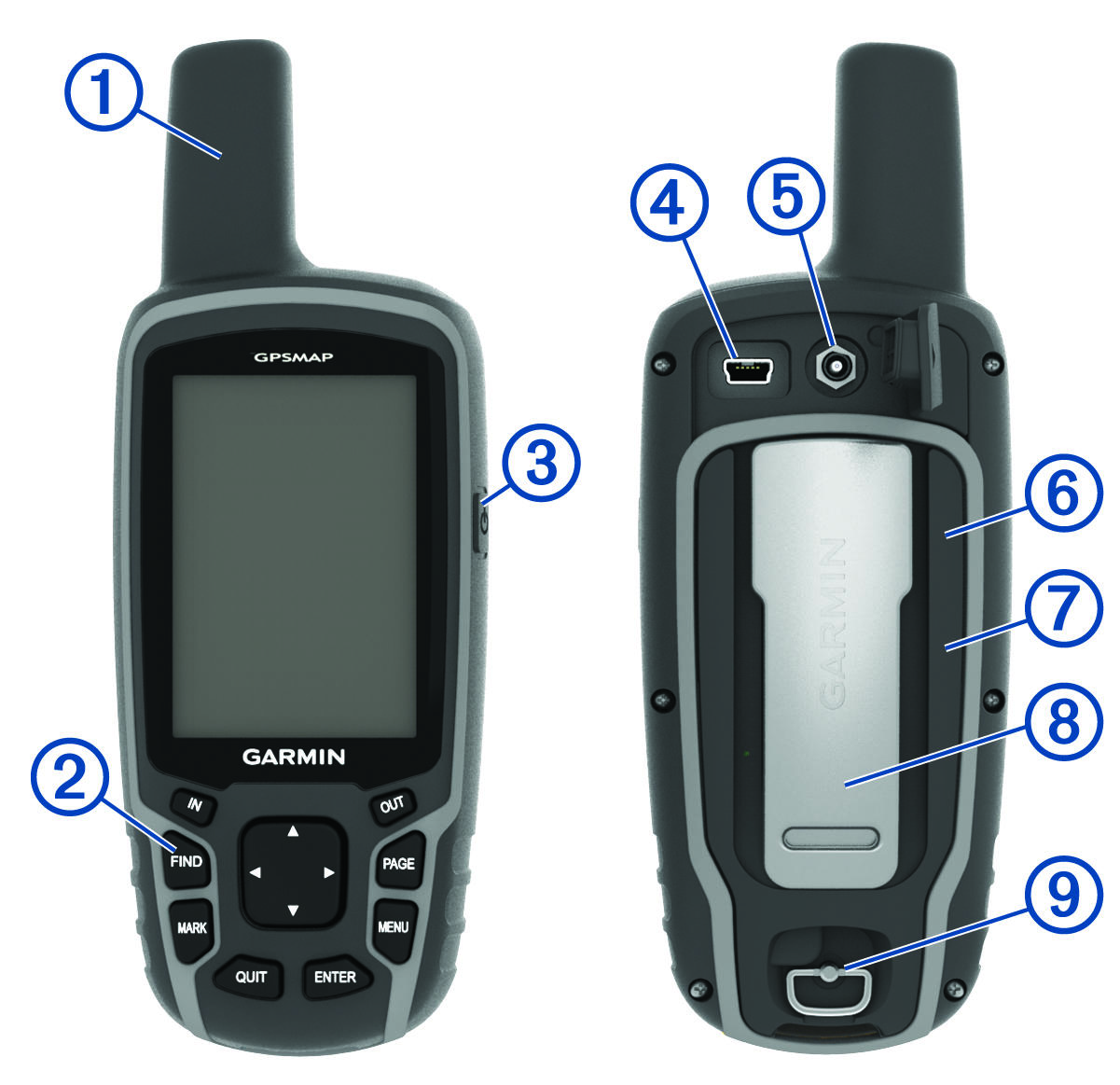

GPSMAP® Device Overview (No Camera)


Vistas frontal e posterior do dispositivo com anotações

Callout number one

GPS/GNSS antenna

Callout number two

Keys

Callout number three

Power key

Callout number four

Mini-USB port (under weather cap)

Callout number five

MCX connector for GPS antenna (under weather cap)1

Callout number six

microSD® card slot (under batteries)

Callout number seven

Battery compartment

Callout number eight

Mounting spine

Callout number nine

Battery cover D-ring

1 The MCX connector is not included on all product models.
